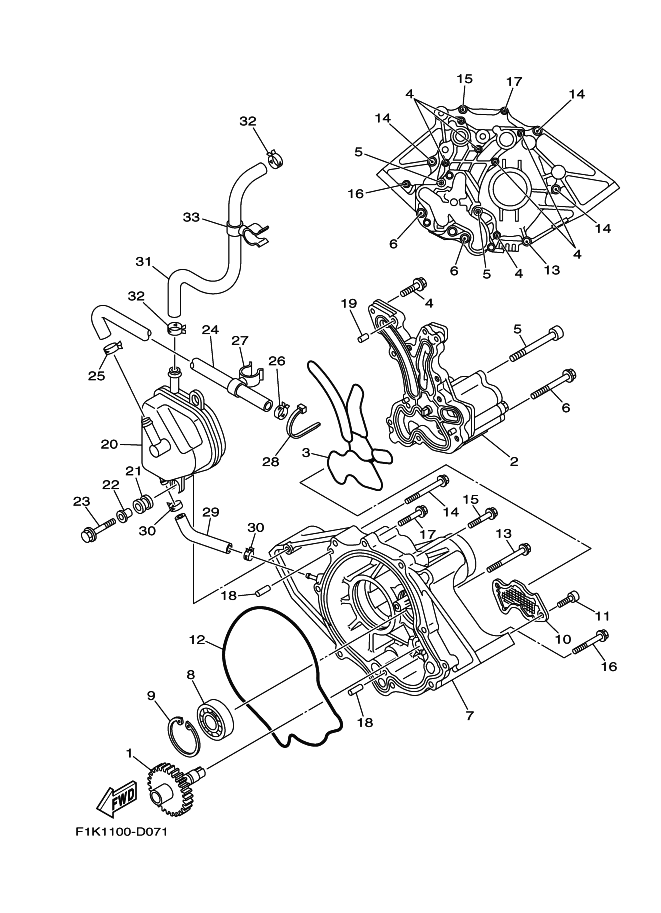

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
6B6-13360-00 |
ﾄﾞﾘﾌﾞﾝ ｷﾞﾔ ｱｾﾝﾌﾞﾘ
|
|
2 |
6D3-13300-01 |
ｵｲﾙﾎﾟﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
3 |
6D3-13563-00 |
ｶﾞｽｹﾂﾄ
|
|
4 |
97513-06525 |
ﾎﾞﾙﾄ,ｳｲｽﾞ ﾜﾂｼﾔ-
|
|
5 |
90110-08041 |
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝｿｹﾂﾄﾍﾂﾄﾞ
|
|
6 |
90119-08085 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
7 |
6B6-13327-01-94 |
ｶﾊﾞ-,ﾎﾟﾝﾌﾟｷﾞｱ
|
|
8 |
93306-30441 |
BEARING
|
|
9 |
99009-52500 |
ｻｰｸﾘﾂﾌﾟ
|
|
10 |
6B6-13411-00 |
ｽﾄﾚ-ﾅ,ｵｲﾙ
|
|
11 |
91317-06016 |
BOLT
|
|
12 |
6B6-13475-01 |
ｶﾞｽｹﾂﾄ
|
|
13 |
90119-08045 |
BOLT, WITH WASHER
|
|
14 |
90119-08034 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
15 |
90119-08043 |
BOLT, WITH WASHER
|
|
16 |
97513-06555 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
17 |
97513-06535 |
BOLT, WITH WASHER
|
|
18 |
93608-16M16 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
19 |
93606-25M00 |
PIN, DOWEL
|
|
20 |
6D3-11164-00 |
ｾﾊﾟﾚｰﾀ,ｵｲﾙ
|
|
21 |
6A0-82317-00 |
ﾀﾞﾝﾊﾟ,ｲｸﾞﾆﾂｼﾖﾝｺｲﾙ
|
|
22 |
90387-06119 |
ｶﾗ-
|
|
23 |
90119-06M65 |
BOLT, WITH WASHER
|
|
24 |
6D3-11126-00 |
ﾊﾟｲﾌﾟ,ﾌﾞﾘ-ｻﾞ 3
|
|
25 |
90467-170A0 |
CLIP
|
|
26 |
90467-170A0 |
CLIP
|
|
27 |
90464-21001 |
ｸﾗﾝﾌﾟ
|
|
28 |
90464-18006 |
ｸﾗﾝﾌﾟ
|
|
29 |
6D3-11125-00 |
ﾊﾟｲﾌﾟ,ﾌﾞﾘ-ｻﾞ 4
|
|
30 |
90467-110A1 |
ｸﾘﾂﾌﾟ
|
|
31 |
6D3-11166-00 |
ﾊﾟｲﾌﾟ,ﾌﾞﾘ-ｻﾞ 1
|
|
32 |
90467-170A0 |
CLIP
|
|
33 |
90464-21001 |
ｸﾗﾝﾌﾟ
|
|
|
