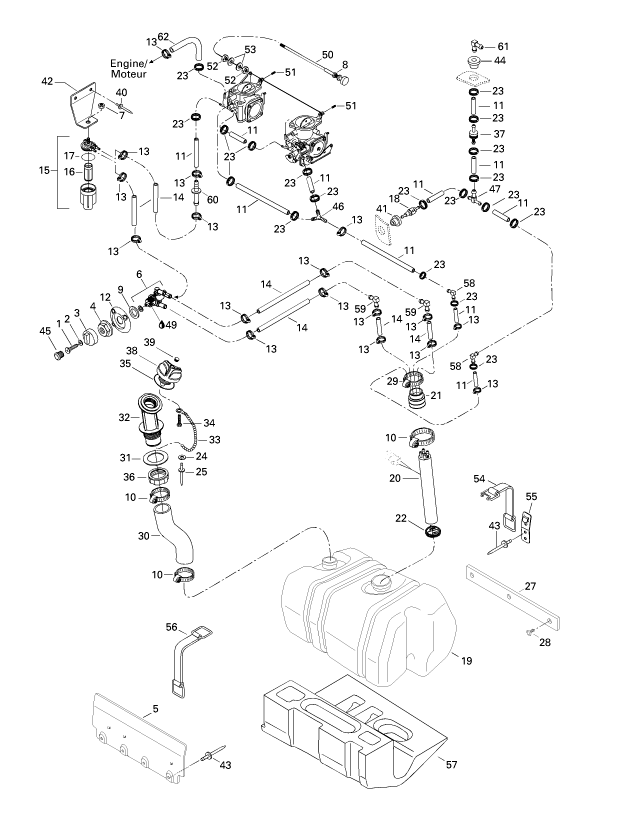

1

212200004

SCREW-PAN HD.PH.DIN.7985A-A2

2

213200010

WASHER-FLAT DIN.433A2

3

275500299

KNOB-VALV.FUEL

4

212100009

NUT-HEX.PLASTIC

5

292000409

SHIELD-HEAT

6

275500394

VALVE-FUEL

7

212000001

NUT-STOP ELASTIC DIN.985-A2(M6

8

211100030

NUT-HEXAGONAL HI-LEX

9

293250004

GASKET

10

293650023

CLAMP-TRIDON

11

275500139

HOSE-6MM.(4.572M/PAC)

12

275500285

PLATE-VAL.FUEL

13

293650038

HOSE CLAMP

14

275500345

HOSE-5/16

15

275500358

FILTER-FUEL ASSY.

16

275500089

FILTER-FUEL

17

275500090

RING-O

18

275500104

VALVE-CHECK

19

275500337

TANK-FUEL

20

275500356

BAFFLE-PICK UP

21

275500111

ADAP-TUBE FUEL

22

275500249

FILTER-FUEL

23

293650042

CLAMP-OETIKER

24

213200018

WASHER-FLAT DIN.9021B-A2

25

390407900

RIVET-POP 1/8

27

293830048

PAD-RUBBER

28

293730006

DART-BLACK

29

293650035

CLAMP-TRIDON

30

275500338

HOSE-FIL.NECK

31

293250029

GASKET

32

275500229

NECK-FILLER

33

275500230

CHAIN-CAP FUEL

34

211000028

SCREW-PT.HEX.FLANGE K40 X 10

35

293250017

GASKET

36

211100012

NUT-NECK FILLER FUEL

37

275500087

VALVE-CHECK

38

275500153

CAP-FUEL SUB.

39

293000034

CAP-SNAP BLACK

40

293150037

RIVET-AVDEL 3/16

41

293720029

GROMMET

42

275500228

SUPP-FILTER FU

43

293150037

RIVET-AVDEL 3/16

44

293720001

GROMMET

45

275500241

PLUG-CAP FUEL VALVE

46

293710059

FITTING-Y

47

293710024

FITTING-T

48

294000606

TIE-RAP 180MM

49

293550010

GREASE-SYNTH

50

270000265

CABLE-CHOKE

51

210100014

SCREW-SET SOCKET DIN.916A2

52

212100003

NUT-JAM HEXAGONAL DIN.439B-A2

53

213200001

WASHER-FLAT DIN.125A-A2(M6)

54

293850025

STRAP-FUEL TANK

55

293850024

CLIP-STRAP

56

293850021

STRAP-RUBBER

57

292000439

SUPPORT-TANK

58

293710050

FITTING-ELBOW

59

414650200

CONNECTOR-MALE

60

293710035

FITTING-STRAIG

61

414580600

CONNECTOR-MALE

62

275500270

HOSE-FORMED
