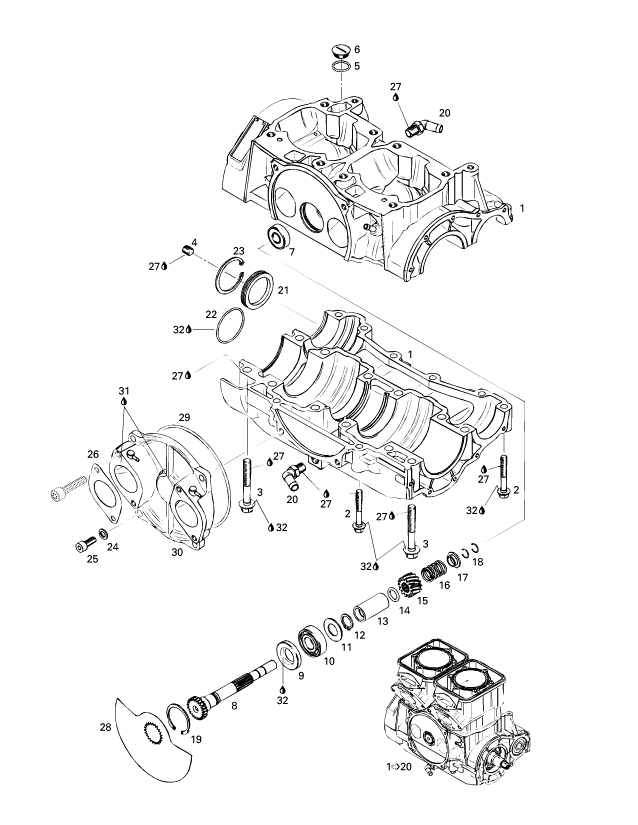

1

290887239

CRANKCASE-ASSY

2

290240328

SCREW-HEX.FLAN

3

290941333

SCREW-HEX.FLAN

4

290240483

PLUG-DRAIN

5

290250890

RING-O

6

290241801

PLUG-DRAIN

7

290932797

BEARING-BALL

8

290837351

SHAFT-ROTARY

9

290930580

SEAL-OIL

10

290932032

BEARING-BALL

11

290227439

SHIM

12

290845450

RING-SNAP

13

290847287

SLEEVE-DISTANC

14

293300024

RING-O

15

290935735

SPROCKET-14 TEETH

16

290938810

SPRING

17

290827430

SEAT-SPRING

18

290845160

CIRCLIP-#12

19

290845260

RING-SNAP

20

290922245

TUBE-ANGULAR

21

290810740

COVER-BEARING

22

290230300

RING-O

23

290945823

COVER-BEARING

24

217383600

WASHER-LOCK SPRING DIN.128A-A2

25

290240073

SCREW-ALLEN

26

293250070

GASKET

27

293800007

LOCTITE-515

28

290924502

VALVE-ROTARY

29

290831765

RING-O

30

290810738

COVER-ROTARY

31

293800038

LOCTITE-518

32

413707000

DOW CORNING 111

33

290886390

SET-GASKET
