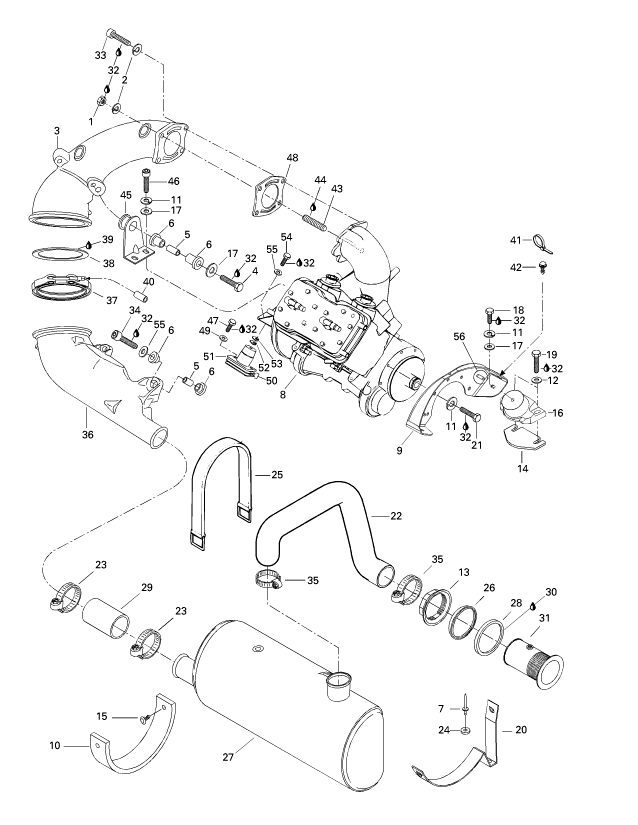

1

212100007

NUT-HEXAGONAL DIN.934A2

2

213200003

WASHER-FLAT DIN.125A-A2

3

274000161

PIPE-HEAD

4

215684060

SCREW-HEX.CAP DIN.931A2

5

274000254

BUSHING

6

293830036

BUSHING-RUBBER

7

293150037

RIVET-AVDEL 3/16

8

270000304

ENGINE 787

9

270000307

SUPPORT-ENGINE

10

293830055

PAD-RUBBER

11

213000001

WASHER-LOCK HELICAL DIN.127B-

12

213200002

WASHER-FLAT DIN.125A-A2(M8)

13

274000224

NUT-72MM

14

270000122

SHIM- 0-3MM

14

270000123

SHIM- 1-3MM
Shim

15

293730011

DART-BLACK

16

270000296

MOUNT-RUBBER

17

213200011

WASHER-FLAT DIN.9021B-A2

18

215681660

SCREW-HEX.CAP DIN.933A2

19

215084060

SCREW-HEX.CAP DIN.933A2

20

274000400

SUPPORT-MUFFLE

21

210000001

SCREW-HEX.CAP DIN.933A2

22

274000420

HOSE-EXHAUST

23

293650036

CLAMP-TRIDON

24

213200015

WASHER-FLAT DIN.9021B-A2

25

293850021

STRAP-RUBBER

26

274000225

WASHER-STABILIZING

27

274000490

MUFFLER-BLACK

28

293250041

GASKET

29

274000170

HOSE-EXHAUST

30

293800033

SEAL-SILICONE

31

274000222

OUTLET-EXHAUST

32

293800015

LOCTITE-242

33

215903060

SCREW-SOCKET HD.DIN.912A2

34

215984060

SCREW-SOCKET HD.DIN.912A2

35

293650064

CLAMP-TRIDON

36

274000210

PIPE-CONE

37

274000357

CLAMP-EXHAUST

38

274000169

WASHER-BRASS

39

413710300

SEALANT

40

275000007

HOSE-8MM.(10M/PAC)

41

293750001

TIE-RAP 94MM

42

293730018

DART-MOUNT

43

211300017

STUD-M10

44

293800005

LOCTITE-271

45

274000489

SUPP-PIPE

46

215982060

SCREW-SOCKET HD.DIN.912A2

47

210000007

SCREW-HEX.CAP DIN.933A2

48

290931500

GASKET

49

213200002

WASHER-FLAT DIN.125A-A2(M8)

50

270000122

SHIM- 0-3MM

50

270000123

SHIM- 1-3MM
Shim

51

270000297

MOUNT-RUBBER

52

270000024

SHIM- 0-4MM

53

270000025

SHIM- 1-3MM

54

210000001

SCREW-HEX.CAP DIN.933A2

55

213200011

WASHER-FLAT DIN.9021B-A2

56

210000002

SCREW-HEX.CAP DIN.933A2
