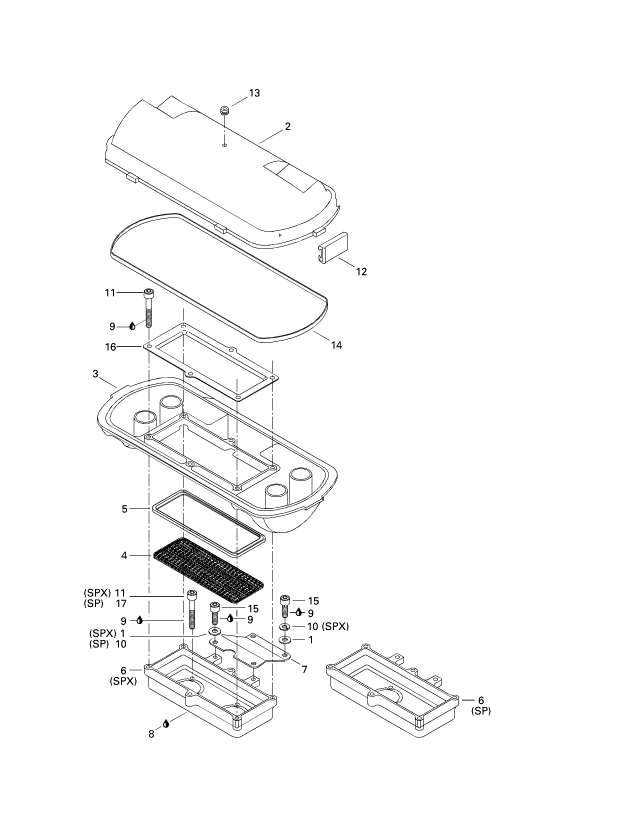

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
213200001 |
WASHER-FLAT DIN.125A-A2(M6)
|
|
2 |
273000065 |
COVER-SIL.AIR
|
|
3 |
273000104 |
BASE-SIL.AIR
|
|
3 |
273000103 |
BASE-SIL.AIR
Air
|
|
4 |
273000062 |
ARREST-FLAME
|
|
4 |
273000077 |
ARREST-FLAME
Flame
|
|
5 |
273000020 |
INSULATOR
|
|
6 |
273000060190 |
**供給停止****供給停止****供給停止****供
|
|
6 |
273000022190 |
**供給停止****供給停止****供給停止****供
Housing
|
|
7 |
270000258 |
SUPP-ARRESTER
|
|
7 |
270000140 |
SUPP-ARRESTER
Support.
|
|
8 |
293800038 |
LOCTITE-518
|
|
9 |
293800015 |
LOCTITE-242
|
|
10 |
217361500 |
WASHER-LOCK HELICAL DIN.127B-A
|
|
11 |
210100012 |
SCREW-SOCKET HD.DIN.912A2
|
|
12 |
273000006 |
CLIP-RETAINER
|
|
13 |
293830005 |
PLUG-RUBBER
|
|
14 |
293250023 |
GASKET
|
|
15 |
210100009 |
SCREW-SOCKET HD.DIN.912A2
|
|
16 |
273000059 |
HOLDER
|
|
17 |
215963560 |
SCREW-SOCKET HD.DIN.912A2
|
|
