見出番号 |
部品番号 |
部品名 |
数量 |
1 |
65V-W0090-00-4D |

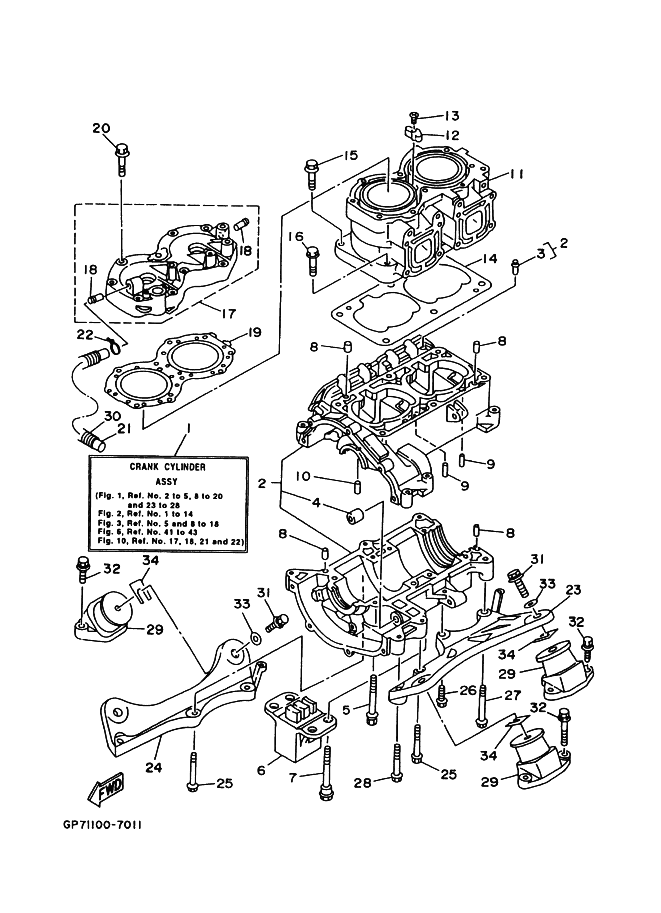

CRANK CYLINDER ASSY
|
|
2 |
64X-15100-00-94 |
【販売終了】ｸﾗﾝｸ ｹｰｽ ｱｾﾝﾌﾞﾘ
|
|
3 |
62T-14251-00 |
NIPPLE
|
|
4 |
90380-12M29 |
ﾌﾞﾂｼﾕ,ｿﾘﾂﾄﾞ
|
|
5 |
90119-08M55 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
6 |
65V-44532-00 |
STOPPER, UPPER MOUNT
|
|
7 |
90109-08M56 |
ﾎﾞﾙﾄ
|
|
8 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
9 |
93603-10049 |
ﾋﾟﾝ, ﾀﾞｳｴﾙ
|
|
10 |
93604-07141 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
11 |
64X-11311-00-94 |
ｼﾘﾝﾀﾞ 1
|
|
12 |
6E5-11325-00 |
ｱﾉ-ﾄﾞ
|
|
13 |
98780-04015 |
ｽｸﾘﾕ,ﾌﾗﾂﾄﾍﾂﾄﾞ
|
|
14 |
6M6-11351-A2 |
ｶﾞｽｹﾂﾄ,ｼﾘﾝﾀﾞ
|
|
15 |
90119-10M56 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
16 |
90119-10M07 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
17 |
64X-11111-00-94 |
HEAD, CYLINDER 1
|
|
18 |
6K8-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
19 |
64X-11181-00 |
GASKET, CYLINDER HEAD 1
|
|
20 |
90119-08M19 |
BOLT, WITH WASHER
|
|
21 |
90445-14M07 |
HOSE (L1070)
|
|
22 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
23 |
6R7-21415-00-94 |
BRACKET, FRONT UPPER 1
|
|
24 |
6R7-21425-00-94 |
BRACKET, REAR UPPER 1
|
|
25 |
90119-10M02 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
26 |
90119-10M00 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
27 |
90119-10M03 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
28 |
90119-10M01 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
29 |
63M-44517-01-5B |
MOUNT RUBBER
|
|
30 |
90446-20M70 |
ﾎｰｽ(L800)
|
|
31 |
90119-08904 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
32 |
90119-089UN |
BOLT, WITH WASHER
|
|
33 |
90201-099U3 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
34 |
EU0-U7354-00-01 |
ｼﾑ(T=01)
UR
|
|
34 |
EU0-U7354-00-03 |
ｼﾑ(T=03)
UR
|
|
34 |
EU0-U7354-00-05 |
ｼﾑ(T=05)
UR
|
|
34 |
EU0-U7354-00-10 |
ｼﾑ(T=10)
UR
|
|
34 |
EU0-U7354-00-20 |
ｼﾑ(T=20)
UR
|
|
|
