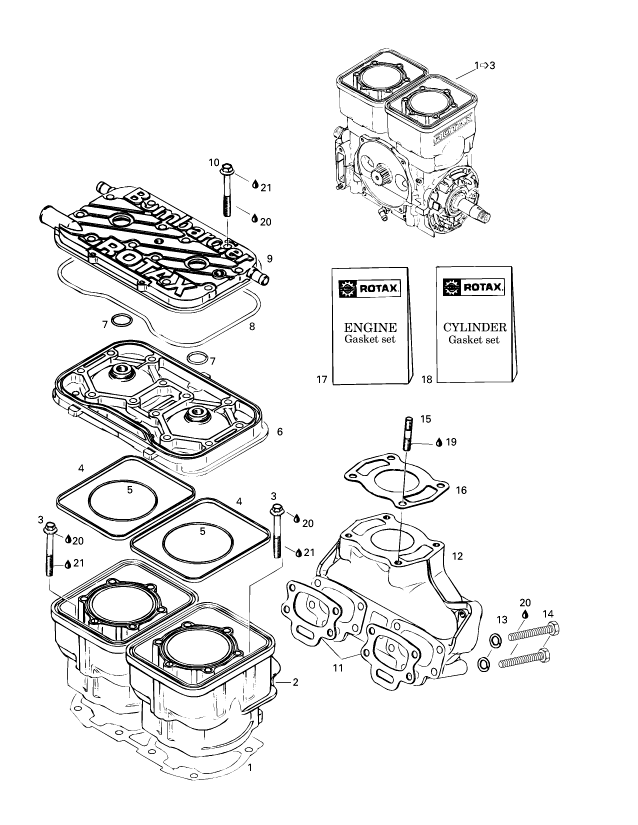

1

290881521

SHORT BLOCK

1

290931400

GASKET-CYL.

1

290931401

GASKET-CYL.

1

290931402

GASKET-CYL.

1

290931403

GASKET-CYL.

1

290931404

GASKET-CYL.
Gasket

2

290923239

CYLINDER BLACK 717
Cylinder

3

290440368

SCREW-HEX.FLAN
Flanged

4

290850045

RING-RUBBER
O-Ring

5

290931410

RING-O
O-Ring

6

290923251

HEAD-CYLINDER
Head

7

290430782

RING-O
O-Ring

8

290950360

RING-O
O-Ring

9

290923261

COVER-CYL.HEAD
Cylinder

10

290841998

SCREW-HEX.FLAN
Flanged

11

290850637

GASKET
Gasket

12

290979141

MANIFOLD-EXH.
Exhaust

13

217383600

WASHER-LOCK SPRING DIN.128A-A2
Lock

14

290841998

SCREW-HEX.FLAN
Hex.

15

290941013

STUD-M8 X 26
Stud

16

290950251

GASKET
Gasket

17

290886317

SET-GASKET
Engine

18

290886316

SET-GASKET CYL
Cylinder

19

290899788

LOCTITE-648
Loctite

20

413707000

DOW CORNING 111
Molykote

21

293800015

LOCTITE-242
Loctite
