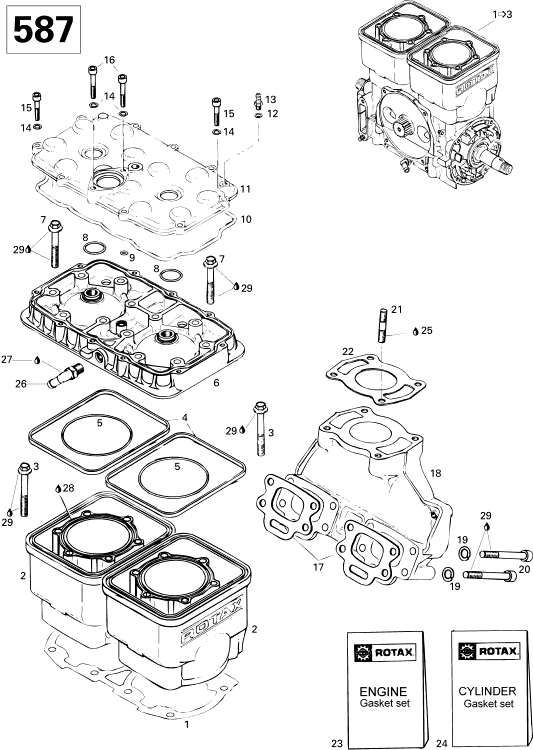

1

290881444

BLOCK-SHORT587

1

290931161

GASKET-CYL.

2

290913376

CYLINDER-ASSY.

3

290841998

SCREW-HEX.FLAN

4

290850040

RING-RUBBER

5

293300026

RING-O

6

290913352

HEAD-CYLINDER

7

290240328

SCREW-HEX.FLAN

8

290430782

RING-O

9

290430200

RING-O

10

290950360

RING-O

11

290913362

COVER-CYL.HEAD

12

290830890

WASHER-SEAL

13

290940557

FITTING-HOSE

14

290845381

WASHER-LOCK

15

210100012

SCREW-SOCKET HD.DIN.912A2

16

290241813

SCREW-SOCKET

17

290850635

GASKET

18

290978348

MANIFOLD-EXH.

19

290845382

WASHER-LOCK

20

290841833

SCREW-SOCKET

21

290941013

STUD-M8 X 26

22

290950251

GASKET

23

290993878

SET-GASKET

24

290993877

SET-GASKET CYL

25

293899788

ﾛｯｸｸﾀｲﾄ

26

293700023

FITTING-ELBOW

27

293800013

SEALANT-PIPE

28

293800007

LOCTITE-515

29

413707000

DOW CORNING 111

30

290830906

GASKET
