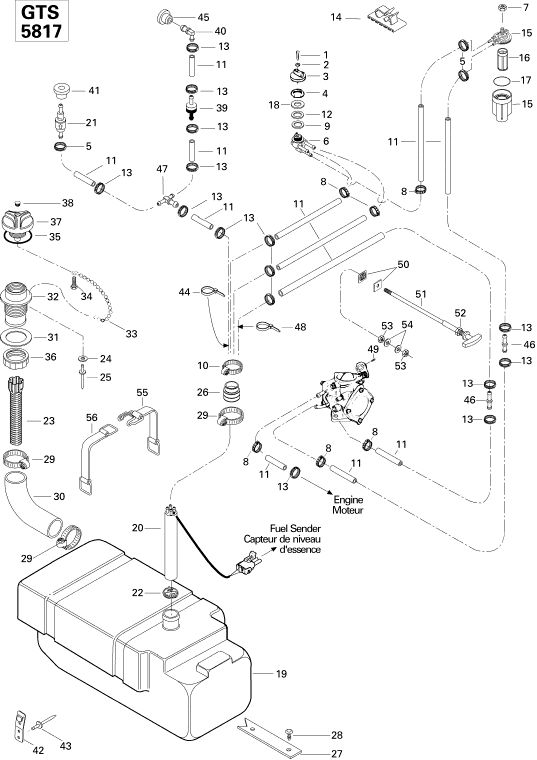

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
212200004 |
SCREW-PAN HD.PH.DIN.7985A-A2
|
|
2 |
213200010 |
WASHER-FLAT DIN.433A2
|
|
3 |
275500134 |
KNOB-VALV.FUEL
|
|
4 |
212100009 |
NUT-HEX.PLASTIC
|
|
5 |
293650062 |
CLAMP-CLIC
|
|
6 |
275500098 |
VALVE-FUEL
|
|
7 |
212000001 |
NUT-STOP ELASTIC DIN.985-A2(M6
|
|
8 |
293650042 |
CLAMP-OETIKER
|
|
9 |
293250004 |
GASKET
|
|
10 |
293650035 |
CLAMP-TRIDON
|
|
11 |
275500139 |
HOSE-6MM.(4.572M/PAC)
|
|
12 |
293250005 |
GASKET
|
|
13 |
293650063 |
CLAMP-CLIC
|
|
14 |
293750005 |
TIE-CLAMP
|
|
15 |
275500088 |
FILTER-FUEL AS
|
|
16 |
275500089 |
FILTER-FUEL
|
|
17 |
275500090 |
RING-O
|
|
18 |
293050003 |
WASHER
|
|
19 |
275500183 |
TANK-FUEL
|
|
20 |
275500318 |
BAFFLE-PICK UP
|
|
21 |
275500104 |
VALVE-CHECK
|
|
22 |
275500249 |
FILTER-FUEL
|
|
23 |
275500316 |
HOSE-FIL.NECK
|
|
24 |
213200018 |
WASHER-FLAT DIN.9021B-A2
|
|
25 |
293150032 |
RIVET-POP 1/8
|
|
26 |
275500111 |
ADAP-TUBE FUEL
|
|
27 |
293830033 |
PAD-RUBBER
|
|
28 |
293730006 |
DART-BLACK
|
|
29 |
293650023 |
CLAMP-TRIDON
|
|
30 |
275500211 |
HOSE-FIL.NECK
|
|
31 |
293250029 |
GASKET
|
|
32 |
275500247 |
NECK-FILLER
|
|
33 |
275500015 |
CHAIN-CAP OIL
|
|
34 |
211000028 |
SCREW-PT.HEX.FLANGE K40 X 10
|
|
35 |
293250017 |
GASKET
|
|
36 |
211100012 |
NUT-NECK FILLER FUEL
|
|
37 |
275500194 |
CAP-FUEL SUB.
|
|
38 |
293000015 |
CAP-SNAP VIOL.
|
|
39 |
275500087 |
VALVE-CHECK
|
|
40 |
293710001 |
FITTING-ELBOW
|
|
41 |
293720029 |
GROMMET
|
|
42 |
293850024 |
CLIP-STRAP
|
|
43 |
293150037 |
RIVET-AVDEL 3/16
|
|
44 |
293750008 |
TIE-RAP 350MM
|
|
45 |
570135100 |
GROMMET
|
|
46 |
293710039 |
FITTING-STRAIG
|
|
47 |
293710024 |
FITTING-T
|
|
48 |
294000606 |
TIE-RAP 180MM
|
|
49 |
210100014 |
SCREW-SET SOCKET DIN.916A2
|
|
50 |
291000457 |
PLATE-CHOKE
|
|
51 |
277000077 |
CABLE-CHOKE
|
|
52 |
211100007 |
NUT-HEXAGONAL HI-LEX
|
|
53 |
212100003 |
NUT-JAM HEXAGONAL DIN.439B-A2
|
|
54 |
213200001 |
WASHER-FLAT DIN.125A-A2(M6)
|
|
55 |
293850025 |
STRAP-FUEL TANK
|
|
56 |
293850026 |
STRAP-FUEL TANK
|
|
