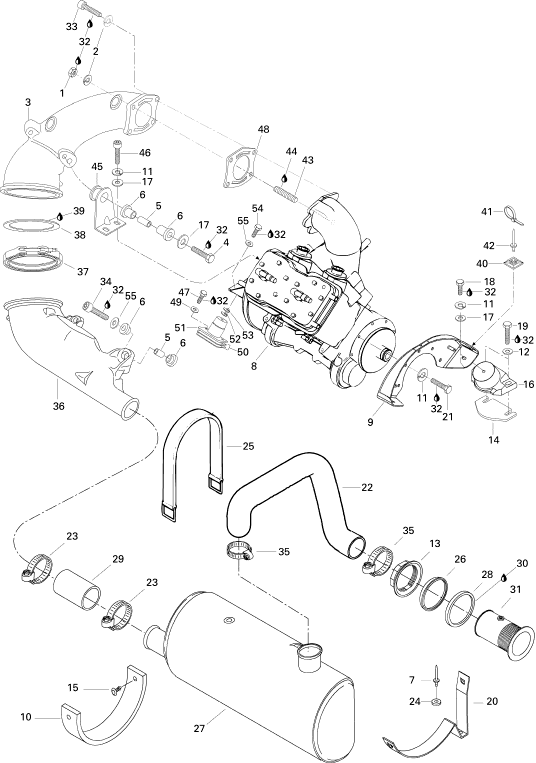

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
212100007 |
NUT-HEXAGONAL DIN.934A2
|
|
2 |
224701188 |
WASHER-LOCK SPRING DIN.128A-A2
|
|
3 |
274000161 |
PIPE-HEAD
|
|
4 |
215684060 |
SCREW-HEX.CAP DIN.931A2
|
|
5 |
274000254 |
BUSHING
|
|
6 |
293830036 |
BUSHING-RUBBER
|
|
7 |
293150037 |
RIVET-AVDEL 3/16
|
|
8 |
270000203 |
R 2700003-04
|
|
9 |
270000219 |
SUPPORT-ENGINE
|
|
10 |
293830008 |
PAD-RUBBER
|
|
11 |
213000001 |
WASHER-LOCK HELICAL DIN.127B-
|
|
12 |
213200002 |
WASHER-FLAT DIN.125A-A2(M8)
|
|
13 |
274000224 |
NUT-72MM
|
|
14 |
270000122 |
SHIM- 0-3MM
|
|
14 |
270000123 |
SHIM- 1-3MM
|
|
15 |
293730011 |
DART-BLACK
|
|
16 |
270000220 |
MOUNT-RUBBER
|
|
17 |
213200011 |
WASHER-FLAT DIN.9021B-A2
|
|
18 |
215681660 |
SCREW-HEX.CAP DIN.933A2
|
|
19 |
215084060 |
SCREW-HEX.CAP DIN.933A2
|
|
20 |
274000400 |
SUPPORT-MUFFLE
|
|
21 |
210000001 |
SCREW-HEX.CAP DIN.933A2
|
|
22 |
274000420 |
HOSE-EXHAUST
|
|
23 |
293650036 |
CLAMP-TRIDON
|
|
24 |
213200015 |
WASHER-FLAT DIN.9021B-A2
|
|
25 |
293850021 |
STRAP-RUBBER
|
|
26 |
274000225 |
WASHER-STABILIZING
|
|
27 |
274000418 |
MUFFLER
|
|
28 |
293250041 |
GASKET
|
|
29 |
274000170 |
HOSE-EXHAUST
|
|
30 |
293800033 |
SEAL-SILICONE
|
|
31 |
274000222 |
OUTLET-EXHAUST
|
|
32 |
293800015 |
LOCTITE-242
|
|
33 |
215903060 |
SCREW-SOCKET HD.DIN.912A2
|
|
34 |
215984060 |
SCREW-SOCKET HD.DIN.912A2
|
|
35 |
293650064 |
CLAMP-TRIDON
|
|
36 |
274000210 |
PIPE-CONE
|
|
37 |
274000357 |
CLAMP-EXHAUST
|
|
38 |
274000169 |
WASHER-BRASS
|
|
39 |
413710300 |
SEALANT
|
|
40 |
293750015 |
MOUNT-TIE RAP
|
|
41 |
293750001 |
TIE-RAP 94MM
|
|
42 |
293150016 |
RIVET-POP 1/8
|
|
43 |
211300017 |
STUD-M10
|
|
44 |
293800005 |
LOCTITE-271
|
|
45 |
274000384 |
SUPP-PIPE VIOL
|
|
46 |
215982060 |
SCREW-SOCKET HD.DIN.912A2
|
|
47 |
210000007 |
SCREW-HEX.CAP DIN.933A2
|
|
48 |
290931500 |
GASKET
|
|
49 |
213200002 |
WASHER-FLAT DIN.125A-A2(M8)
|
|
50 |
270000122 |
SHIM- 0-3MM
|
|
50 |
270000123 |
SHIM- 1-3MM
|
|
51 |
270000222 |
MOUNT-RUBBER
|
|
52 |
270000024 |
SHIM- 0-4MM
|
|
53 |
270000025 |
SHIM- 1-3MM
|
|
54 |
210000001 |
SCREW-HEX.CAP DIN.933A2
|
|
55 |
213200011 |
WASHER-FLAT DIN.9021B-A2
|
|
