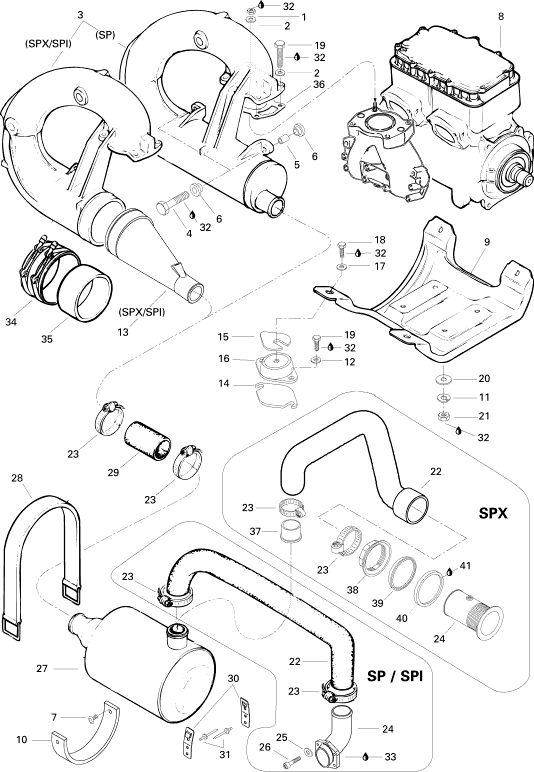

1

212100001

NUT-HEXAGONAL DIN.934A2

2

293050001

WASHER-8MM

3

274000302

PIPE-HEAD

4

215684060

SCREW-HEX.CAP DIN.931A2

5

274000114

BUSHING

6

293830031

BUSHING-RUBBER

7

293730006

DART-BLACK

8

270000135

ｴﾝｼﾞﾝ717

9

270000147

SUPPORT-ENGINE

10

293830008

PAD-RUBBER

11

213000003

WASHER-LOCK HELICAL DIN.127B-A

12

213200002

WASHER-FLAT DIN.125A-A2(M8)

13

274000265

R 274000488

14

270000006

SHIM-0.40MM

14

270000007

SHIM- 1-3MM

15

270000024

SHIM- 0-4MM

15

270000025

SHIM- 1-3MM

16

270000217

MOUNT-RUBBER

17

213200011

WASHER-FLAT DIN.9021B-A2

18

210000001

SCREW-HEX.CAP DIN.933A2

19

210000007

SCREW-HEX.CAP DIN.933A2

20

213200003

WASHER-FLAT DIN.125A-A2

21

212100007

NUT-HEXAGONAL DIN.934A2

22

274000228

HOSE-EXHAUST

23

293650036

CLAMP-TRIDON

23

293650064

CLAMP-TRIDON

24

274000222

OUTLET-EXHAUST

27

274000249

MUFFLER-BL.VIO

28

293850021

STRAP-RUBBER

29

274000032

HOSE-EXHAUST

30

293850024

CLIP-STRAP

31

293150037

RIVET-AVDEL 3/16

32

293800015

LOCTITE-242

34

274000211

CLAMP-EXHAUST

35

274000074

RING-SEALING

36

290950251

GASKET

37

274000383

ADAP-HOSE

38

274000224

NUT-72MM

39

274000225

WASHER-STABILIZING

40

293250041

GASKET

41

293800033

SEAL-SILICONE
