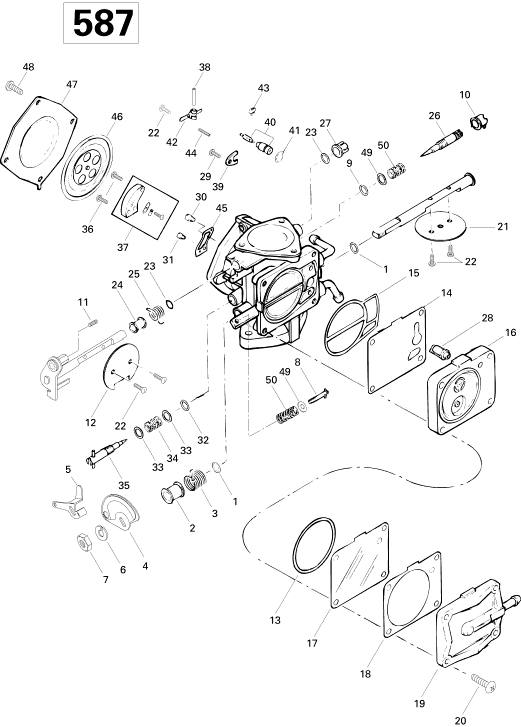

BRP　SEA DOO  1996年式  SPI 　5878 ＞ キャブレター
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

270500204

CARBURATOR

1

270500065

RING-SEALING

2

270500192

RING

3

270500191

SPRING

4

270500061

LEVER-ASSY.

5

270500172

LEVER-THROTTLE

6

270500011

WASHER-SPRING

7

270500012

NUT

8

270500137

SCREW-ASSY.

9

270500144

RING-O

10

270500154

CAP-WHITE

11

210100014

SCREW-SET SOCKET DIN.916A2

13

270500102

RING-O

14

270500103

GASKET

15

270500104

RING-O

16

270500105

BODY-PUMP ASSY

17

270500106

DIAPHRAGM

18

270500146

GASKET

19

270500108

COVER-PUMP

20

270500143

SCREW

23

270500064

RING-SEALING

24

270500110

RING

25

270500147

SPRING

26

270500113

SCREW-ADJUSTER

27

270500114

RING

28

270500115

FILTER-FUEL

29

270500155

SCREW-SPR.WASH

30

270500210

JET-MAIN 147.5

31

270500117

JET-PILOT 65

32

270500119

RING-O

33

270500018

WASHER

34

270500019

SPRING

35

270500020

SCREW-IDLE

36

270500123

SCREW

37

270500124

VALVE-ASSY.

38

270500038

PIN

39

270500125

PLATE

40

270500208

VALVE-NEEDLE

41

270500127

RING-O

42

270500128

LEVER-VALVE

43

270500129

CLIP

44

270500130

SPRING

45

270500131

GASKET

46

270500132

DIAPHRAGM-ASSY

47

270500133

COVER

48

270500190

SCREW

49

270500136

WASHER

50

270500091

SPRING
