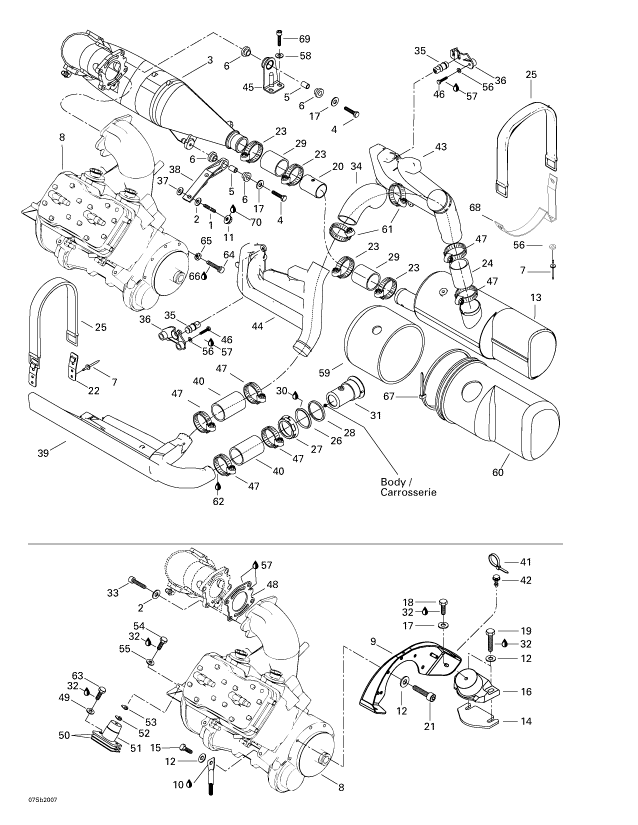

1

250300007

STUD-M10X60

2

234001600

WASHER-FLAT DIN.125A-A2

3

274000395

PIPE-HEAD

4

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

5

274000254

BUSHING

6

293830036

BUSHING-RUBBER

7

293150037

RIVET-AVDEL 3/16

8

270000466

ENGINE-787

9

270000359

SUPPORT-ENGINE

10

293550004

GREASE-DIELECT DC4

11

233101600

NUT-FLANGE HEXAGONAL

12

234081600

WASHER-FLAT DIN.125A-A2

13

274000737

MUFFLER-ASS Y

14

270000122

SHIM- 0-3MM

14

270000123

SHIM- 1-3MM
Shim

15

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

16

270000427

MOUNT-RUBBER PAINT

17

234082600

WASHER-FLAT DIN.9021B-A2

18

207181660

SCREW-HEX.CAP DIN.933A2

19

207184060

SCREW-HEX.CAP DIN.933A2

20

274000776

TUBE-CURVED

21

205582560

SCREW-SOCKET

22

293850030

CLIP-STRAP

23

293650023

CLAMP-TRIDON

24

274000530

HOSE-EXHAUST

25

293850021

STRAP-RUBBER

26

274000225

WASHER-STABILIZING

27

274000224

NUT-72MM

28

293250041

GASKET

29

274000170

HOSE-EXHAUST

30

293800033

SEAL-SILICONE

31

274000222

OUTLET-EXHAUST

32

293800060

LOCTITE-243

33

205503560

SCREW-SOCKET DIN.912A2 S.GRIP

34

274000563

HOSE-EXHAUST

35

293830062

PAD-RUBBER

36

291001204

SUPPORT-PAD

37

234002600

WASHER-FLAT DIN.9021B-A2

38

274000759

SUPP-PIPE

39

295500683

KIT-RESONATOR (GTX-L)

40

274000616

HOSE-EXHAUST

41

414115200

TIE-RAP 180MM

42

293730018

DART-MOUNT

43

274000604

RESONATOR-RH.

44

274000655

RESONATOR-LH.

45

274000779

SUPP-PIPE

46

207152060

SCREW-HEX.CAP DIN.933A2

47

293650064

CLAMP-TRIDON

48

290931503

GASKET

49

234081600

WASHER-FLAT DIN.125A-A2

50

270000122

SHIM- 0-3MM

50

270000123

SHIM- 1-3MM
Shim

51

270000426

MOUNT-RUBBER PAINT

52

270000024

SHIM- 0-4MM

53

270000025

SHIM- 1-3MM

54

207182060

SCREW-HEX.CAP DIN.933A2

55

234082600

WASHER-FLAT DIN.9021B-A2

56

234052600

WASHER-FLAT DIN.9021B-A2

57

293800060

LOCTITE-243

58

293050001

WASHER-8MM

59

274000790

COVER-MUFFLER

60

274000793

COVER-MUFFLER

61

293650107

CLAMP-TRIDON

62

413710300

SEALANT

63

207184060

SCREW-HEX.CAP DIN.933A2

64

205003060

SCREW-SOCKET HD.DIN.912A2

65

232001600

NUT-HEXAGONAL DIN.934A2

66

293800005

LOCTITE-271

67

293750020

TIE-RAP 838MM

68

274000400

SUPPORT-MUFFLE

69

205582560

SCREW-SOCKET

70

413705200

LOCTITE-262
