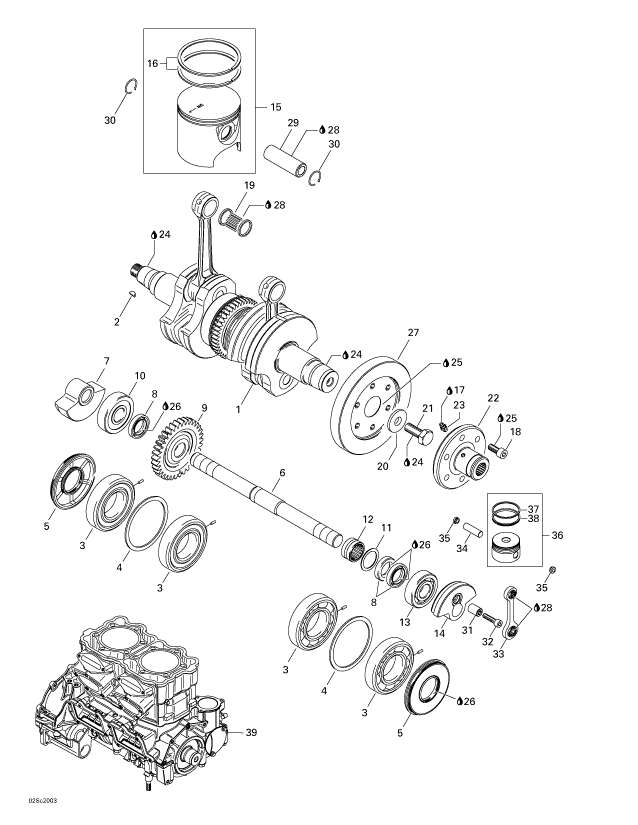

1

290887767

CRANKSHAFT-ASS
Crankshaft

2

420246055

KEY-WOODRUFF
Woodruff

3

420432271

BEARING-BALL 947CRANK
Ball

4

420926190

WASHER 947CRANKSHAFT
Washer

5

290931731

SEAL-OIL
Oil

6

290837445

SHAFT-BAL.ASSY
Shaft

10

290932097

BEARING-BALL
Ball

11

420927192

WASHER
Washer

12

290232555

BEARING-NEEDLE
Needle

13

290932097

BEARING-BALL
Ball

14

290818955

MASS-BALANCE
Mass

15

290889040

PISTON-ASSY.
Piston

15

290889041

PISTON-ASSY
Piston

16

290815265

RING-R
Rectangular

16

290815266

RING-R
Rectangular

17

293550010

GREASE-SYNTH
Synthetic

18

205082060

SCREW-SOCKET HD.DIN.912A2
Socket

19

290832552

NEEDLE BEARING
Needle

20

290827782

WASHER
Washer

21

290640120

SCREW-HEX.
Hex.

22

290958122

FLANGE-COUPLING
Coupling

23

290499113

FITTING-GREASE
Grease

24

293800060

LOCTITE-243
Loctite

25

413711400

LOCTITE-648
Loctite

26

413707000

DOW CORNING 111
Molykote

27

290958082

COUPLING-SILVER
Coupling

28

413802900

OIL 2T 12X1 MINERAL
Injection

29

290916396

PISTON PIN
Piston

30

290845465

CIRCLIP-#21
Circlip

31

290921460

PIN-COMPRESSOR
Compressor

32

290640690

SCREW-M6X25
Screw

33

290917505

CONROD-ASSY
Conrod

34

290916430

PIN-PISTON
Piston

35

290847940

BUSH-DISTANCE
Distance

36

290888550

PISTON-ASSY
Piston

37

290215970

RING-RECTANGULAR
Rectangular

38

290215960

RING-SCRAPER OIL
Oil

39

290094705

BLOCK-SHORT947
Short

40

290888133

SET-GASKET
Engine

41

290888138

SET-GASKET CYL
Cylinder
