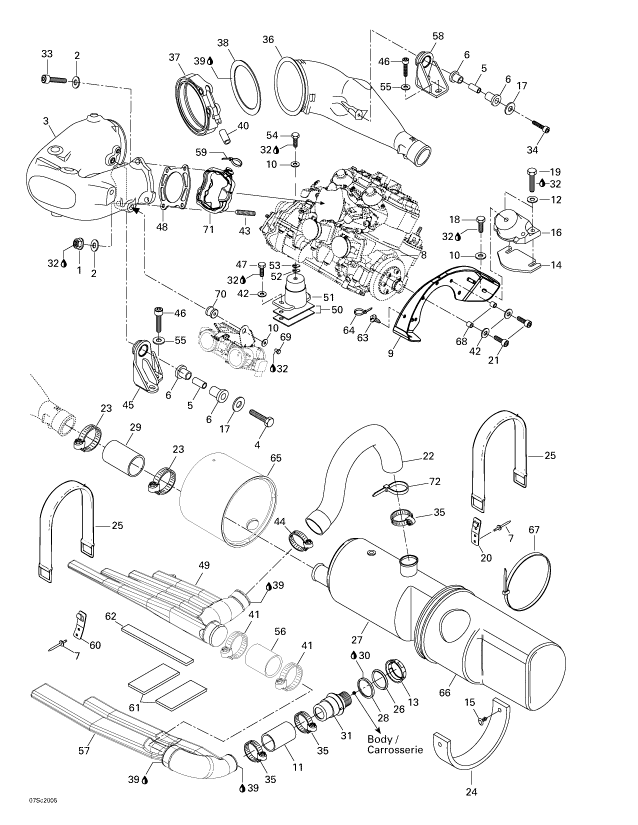

1

233101600

NUT-FLANGE HEXAGONAL

2

211200051

WASHER-FLAT

3

274000767

PIPE-HEAD

4

207204060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

5

274000861

BUSHING

6

293830065

BUSHING-RUBBER

7

293150037

RIVET-AVDEL 3/16

8

270000487

ENGINE-947 DI

9

270000449

SUPPORT-ENGINE

10

234082600

WASHER-FLAT DIN.9021B-A2

11

274000616

HOSE-EXHAUST

12

234081600

WASHER-FLAT DIN.125A-A2

13

274000224

NUT-72MM

14

270000122

SHIM- 0-3MM

14

270000123

SHIM- 1-3MM
Shim

15

414644300

DART-WINDSHIELD

16

270000421

MOUNT-RUBBER

17

234002600

WASHER-FLAT DIN.9021B-A2

18

207181660

SCREW-HEX.CAP DIN.933A2

19

207184060

SCREW-HEX.CAP DIN.933A2

20

293850024

CLIP-STRAP

21

205582560

SCREW-SOCKET

22

274000830

HOSE-EXHAUST

23

293650064

CLAMP-TRIDON

24

293830069

PAD-RUBBER

25

293850021

STRAP-RUBBER

26

274000225

WASHER-STABILIZING

27

274000826

MUFFLER

28

293250041

GASKET

29

274000875

HOSE-EXHAUST

30

293800033

SEAL-SILICONE

31

274000843

OUTLET-EXHAUST

32

293800060

LOCTITE-243

33

205503560

SCREW-SOCKET DIN.912A2 S.GRIP

34

205504060

SCREW-SOCKET DIN.912A2 S.GRIP

35

293650064

CLAMP-TRIDON

36

274000871

CONE-EXHAUST

37

274000510

CLAMP-EXHAUST

38

274000511

RING-SEALING

39

413710300

SEALANT

40

275000007

HOSE-8MM.(10M/PAC)

41

204000079

CLAMP-TRIDON

42

234081600

WASHER-FLAT DIN.125A-A2

43

250300008

STUD-M10X55

44

293650107

CLAMP-TRIDON

45

274000662

SUPP-PIPE

46

205582560

SCREW-SOCKET

47

207184060

SCREW-HEX.CAP DIN.933A2

48

295500815

KIT-GASKET EXH.

49

274000700

RESONATOR-LH.

50

270000122

SHIM- 0-3MM

50

270000123

SHIM- 1-3MM
Shim

51

270000422

MOUNT-RUBBER

52

270000024

SHIM- 0-4MM

53

270000025

SHIM- 1-3MM

54

207182060

SCREW-HEX.CAP DIN.933A2

55

250200012

WASHER-FLAT M8.4

56

274000726

HOSE-EXHAUST

57

274000701

RESONATOR-LH.

58

274000777

SUPPORT-PIPE

59

293750002

TIE-RAP 130MM

60

293850030

CLIP-STRAP

61

274000752

PAD-RUBBER

62

274000785

PAD-RUBBER

63

293730018

DART-MOUNT

64

414115200

TIE-RAP 180MM

65

274000796

COVER-MUFFLER

66

274000799

COVER-MUFFLER

67

293750020

TIE-RAP 838MM

68

270000453

BUSHING

69

207181260

SCREW-HEX.CAP DIN.933A2

70

274000839

ISOLATOR

71

274000862

ENV-PICK UP

72

293750008

TIE-RAP 350MM
