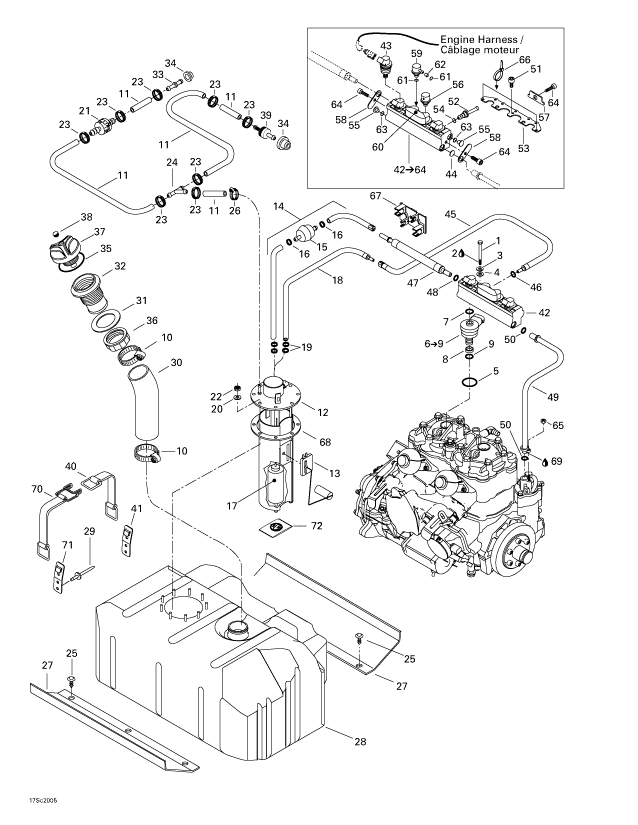

1

207087060

SCREW-HEX.CAP DIN.931A2

2

293800060

LOCTITE-243

3

234181601

WASHER-LOCK HELICAL

4

234081600

WASHER-FLAT DIN.125A-A2

5

293300054

RING-O

6

275500451

INJECTOR-AIR

7

293300066

RING-O

8

270600030

RING-INJECTOR

9

293300076

RING-O

10

293650023

CLAMP-TRIDON

11

275500139

HOSE-6MM.(4.572M/PAC)

12

275500432

MODULE-FUEL ASS Y

13

270600012

LEVEL-SENSOR

14

275500439

HOSE-ASSY

15

275500501

FILTER-FUEL

16

293650030

CLAMP-OETIKER 185

17

275500500

PUMP-FUEL

18

275500440

HOSE-ASS Y

19

293650030

CLAMP-OETIKER 185

20

234052400

WASHER-FLAT DIN.7349

21

275500416

VALVE-CHECK

22

232551200

NUT-STOP ELASTIC DIN.985

23

293650042

CLAMP-OETIKER

24

293710059

FITTING-Y

25

293730006

DART-BLACK

26

293650038

HOSE CLAMP

27

293830077

PAD-RUBBER

28

275500427

TANK-FUEL

29

293150037

RIVET-AVDEL 3/16

30

275500377

HOSE-FIL.NECK

31

293250029

GASKET

32

275500231

NECK-FILLER

33

293710039

FITTING-STRAIG

34

293720029

GROMMET

35

293250075

GASKET

36

211100012

NUT-NECK FILLER FUEL

37

275500430

CAP-FUEL SUB

38

293000034

CAP-SNAP BLACK

39

275500398

VALVE-CHECK

40

293850036

STRAP-FUEL TANK

41

293850024

CLIP-STRAP

42

275500433

DISTRIBUTOR-FUEL

43

275500460

INJECTOR-FUEL

44

275500457

AIR-FILTER

45

275500448

HOSE ASS Y

46

293300070

RING-O

47

275500447

HOSE ASS Y

48

293300069

RING-O

49

270600022

HOSE-PRESSURE

50

293300070

RING-O

52

275500458

AIR RETURN ADAPTOR

54

293300069

RING-O

57

275500456

PLATE-RETAINNER

58

275500455

PLATE-RETAINNER

64

205061260

SCREW-SOCKET HD.DIN.912A2

65

232561600

NUT-STOP ELASTIC DIN.985-A2

66

293750001

TIE-RAP 94MM

67

291001399

TIE-CLAMP

68

293250088

GASKET

69

293800070

LOCT-ANTISEIZE

70

293850037

STRAP-FUEL TANK

71

293850024

CLIP-STRAP

72

219700368

BOSCH SERVICE FILTER
