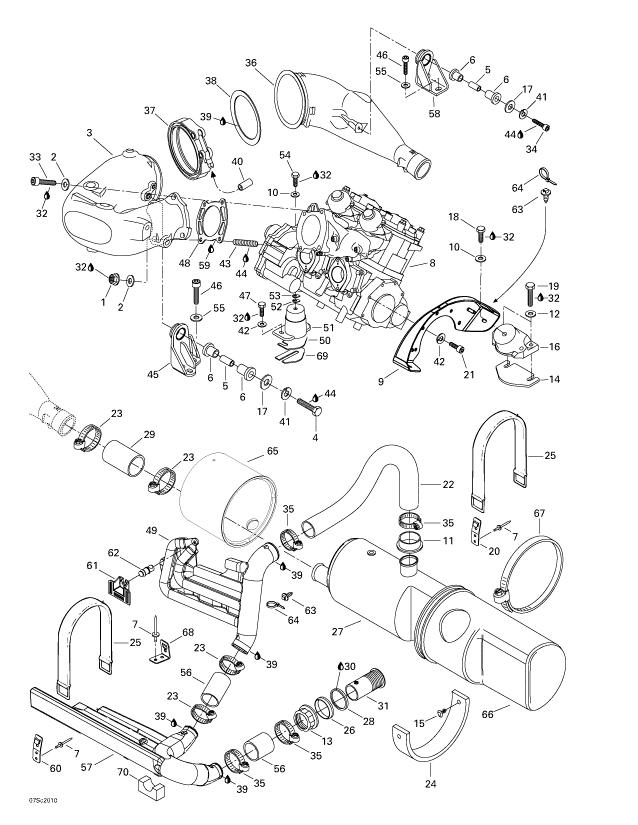

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
233101600 |
NUT-FLANGE HEXAGONAL
Hex.
|
|
2 |
211200051 |
WASHER-FLAT
Washer
|
|
3 |
274000768 |
PIPE-HEAD
Head
|
|
4 |
207004060 |
SCREW-HEX.CAP DIN.931A2
Hex.
|
|
5 |
274000656 |
BUSHING
Bushing
|
|
6 |
293830065 |
BUSHING-RUBBER
Bushing
|
|
7 |
293150011 |
RIVET-POP 3/16
Rivet
|
|
8 |
270000461 |
ENGINE-947
Rotax
|
|
9 |
270000359 |
SUPPORT-ENGINE
Engine
|
|
10 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
11 |
274000766 |
ADAP-HOSE
Hose
|
|
12 |
234081600 |
WASHER-FLAT DIN.125A-A2
Washer
|
|
13 |
274000224 |
NUT-72MM
Nut
|
|
14 |
270000122 |
SHIM- 0-3MM
Shim
|
|
14 |
270000123 |
SHIM- 1-3MM
Shim
|
|
15 |
293730006 |
DART-BLACK
Dart
|
|
16 |
270000421 |
MOUNT-RUBBER
Rubber
|
|
17 |
234002600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
18 |
207181660 |
SCREW-HEX.CAP DIN.933A2
Hex.
|
|
19 |
207184060 |
SCREW-HEX.CAP DIN.933A2
Hex.
|
|
20 |
293850024 |
CLIP-STRAP
Strap
|
|
21 |
205582560 |
SCREW-SOCKET
Socket
|
|
22 |
274000711 |
HOSE-EXHAUST
Exhaust
|
|
23 |
293650064 |
CLAMP-TRIDON
Tridon
|
|
24 |
293830055 |
PAD-RUBBER
Rubber
|
|
25 |
293850021 |
STRAP-RUBBER
Strap
|
|
26 |
274000225 |
WASHER-STABILIZING
Stabiliser
|
|
27 |
274000749 |
MUFFLER-NOIR
Muffler
|
|
28 |
293250041 |
GASKET
Gasket
|
|
29 |
274000530 |
HOSE-EXHAUST
Exhaust
|
|
30 |
293800033 |
SEAL-SILICONE
Silicone
|
|
31 |
274000222 |
OUTLET-EXHAUST
Outlet
|
|
32 |
293800060 |
LOCTITE-243
Loctite
|
|
33 |
205003560 |
SCREW-SOCKET HD.DIN.912A2
Socket
|
|
34 |
205004060 |
SCREW-SOCKET HD.DIN.912A2
Socket
|
|
35 |
293650064 |
CLAMP-TRIDON
Tridon
|
|
36 |
274000658 |
CONE-EXHAUST
Exhaust
|
|
37 |
274000510 |
CLAMP-EXHAUST
Clamp
|
|
38 |
274000511 |
RING-SEALING
Sealing
|
|
39 |
413710300 |
SEALANT
Sealant,
|
|
40 |
275000007 |
HOSE-8MM.(10M/PAC)
Hose
|
|
41 |
234101601 |
WASHER-LOCK HELICAL
Lock
|
|
42 |
234081600 |
WASHER-FLAT DIN.125A-A2
Flat
|
|
43 |
211300025 |
STUD-M10X55
Stud
|
|
44 |
293800005 |
LOCTITE-271
Loctite
|
|
45 |
274000662 |
SUPP-PIPE
Support
|
|
46 |
205582560 |
SCREW-SOCKET
Socket
|
|
47 |
207184060 |
SCREW-HEX.CAP DIN.933A2
Screw
|
|
48 |
293250080 |
GASKET
Gasket
|
|
49 |
274000655 |
RESONATOR-LH.
L.H.
|
|
50 |
270000122 |
SHIM- 0-3MM
Shim
|
|
50 |
270000123 |
SHIM- 1-3MM
Shim
|
|
51 |
270000422 |
MOUNT-RUBBER
Rubber
|
|
52 |
270000024 |
SHIM- 0-4MM
Shim
|
|
53 |
270000025 |
SHIM- 1-3MM
Shim
|
|
54 |
207182060 |
SCREW-HEX.CAP DIN.933A2
Hex.
|
|
55 |
293050001 |
WASHER-8MM
Washer
|
|
56 |
274000616 |
HOSE-EXHAUST
Exhaust
|
|
57 |
295500683 |
KIT-RESONATOR (GTX-L)
Muffler
|
|
58 |
274000666 |
SUPP-PIPE
Pipe
|
|
59 |
293800038 |
LOCTITE-518
Loctite
|
|
60 |
293850030 |
CLIP-STRAP
Strap
|
|
61 |
291001352 |
TIE-RESONATOR
Tie-Resonator
|
|
62 |
293830062 |
PAD-RUBBER
Rubber
|
|
63 |
293730018 |
DART-MOUNT
Dart
|
|
64 |
414115200 |
TIE-RAP 180MM
Tie
|
|
65 |
274000732 |
COVER-MUFFLER
Muffler
|
|
66 |
274000733 |
COVER-MUFFLER
Muffler
|
|
67 |
293650092 |
CLAMP-NORMA
Norma
|
|
68 |
204060017 |
CLIP-STRAP
Strap
|
|
69 |
204250048 |
SHIM- 0-3MM
Shim
|
|
69 |
204250049 |
SHIM-1.3MM.
Shim
|
|
70 |
204060190 |
FOAM SUPPORT-LOWER
Lower
|
|
