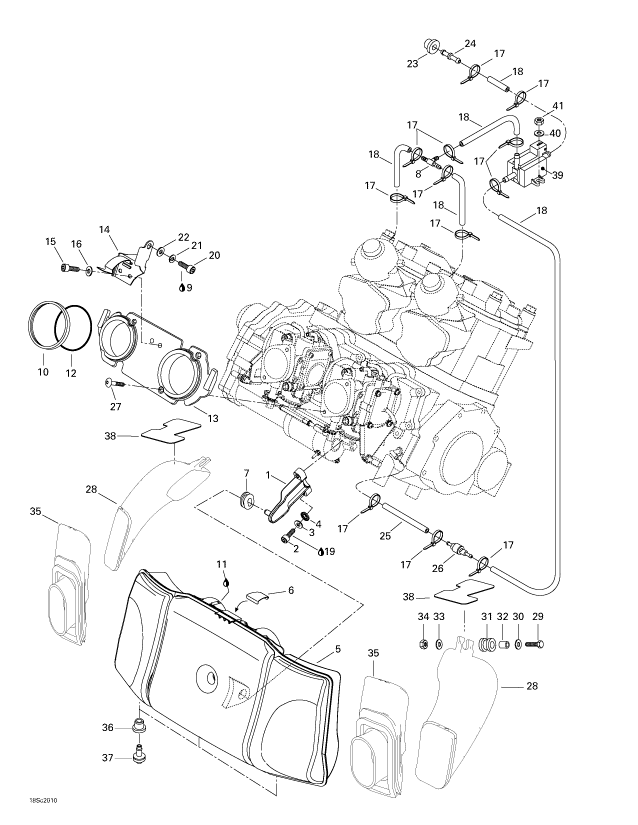

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
273000123 |
SUPP.SILENC
|
|
2 |
205063560 |
SCREW-SOCKET HD.DIN.912A2
|
|
3 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
4 |
234461608 |
WASHER-LOCK SERRATED DIN.6798A
|
|
5 |
273000148 |
SILENCER-AIR
|
|
6 |
273000112 |
PLATE-SUPPORT
|
|
7 |
293720052 |
GROMMET-CABLE
|
|
8 |
293710068 |
FITTING-T
|
|
9 |
293800060 |
LOCTITE-243
|
|
10 |
293250076 |
GASKET
|
|
11 |
293800053 |
INSTANT GASKET
|
|
12 |
293250065 |
RING-O
|
|
13 |
270500383 |
ADAP-SILENC.AIR
|
|
14 |
270000455 |
HOLDER
|
|
15 |
205561260 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
16 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
17 |
293750001 |
TIE-RAP 94MM
|
|
18 |
270000374 |
HOSE-4.3MM(15M/PAC)
|
|
19 |
293800005 |
LOCTITE-271
|
|
20 |
205081660 |
SCREW-SOCKET HD.DIN.912A2
|
|
21 |
234181601 |
WASHER-LOCK HELICAL
|
|
22 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
23 |
293720029 |
GROMMET
|
|
24 |
293700031 |
FITTING
|
|
25 |
276000048 |
HOSE-6MM
|
|
26 |
275500424 |
VALVE-CHECK
|
|
27 |
270500357 |
SCREW-ASSY.
|
|
28 |
273000151 |
DUCT-AIR HIGH
|
|
273000150 |
Air |
|
|
29 |
207063560 |
SCREW-HEX.CAP DIN.931A2
|
|
30 |
234062600 |
WASHER-FLAT DIN.9021B-A2
|
|
31 |
278001260 |
INSULATOR
|
|
32 |
272000074 |
SPACER
|
|
33 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
34 |
232561600 |
NUT-STOP ELASTIC DIN.985-A2
|
|
35 |
273000153 |
ADAPTOR-INTAKE
|
|
273000152 |
Intake |
|
|
36 |
293720029 |
GROMMET
|
|
37 |
275500443 |
VALVE-CHECK
|
|
38 |
273000161 |
PAD-PROTECTOR
|
|
39 |
270600005 |
VALVE-SOLENOID
|
|
40 |
234051600 |
WASHER-FLAT 125A-A2
|
|
41 |
232551600 |
NUT-STOP ELASTIC DIN.985A2
|
|
