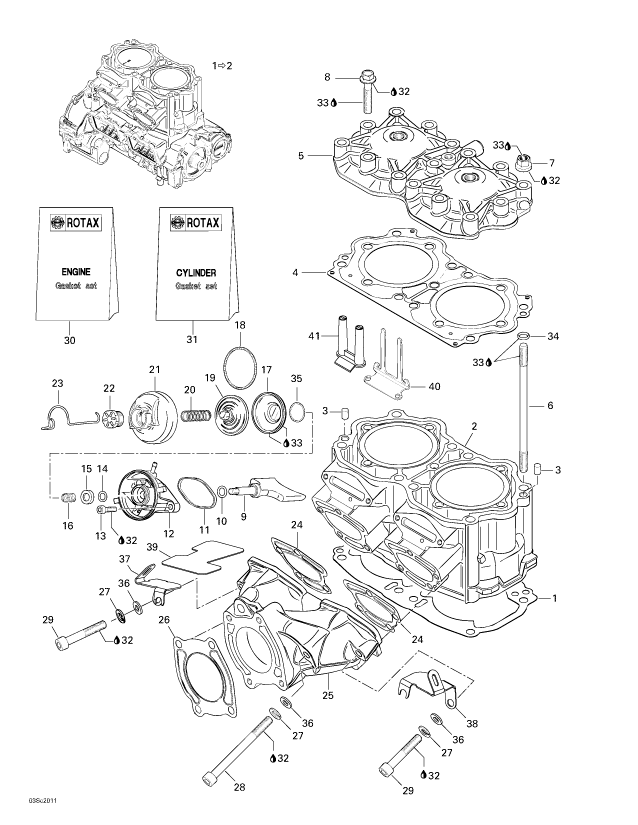

1

290094702

SHORT BLOCK 947

1

290931900

GASKET-CYL.

1

290931901

CYLINDER GASKET 0.6MM
Gasket

1

290931902

CYLINDER GASKET 0.8MM
Gasket

2

290923569

CYLINDER-ASSY.

3

290632010

PIN-CENTER

4

290931702

GASKET-CYL.HE.

5

290923921

CYLINDER-HEAD ASSY

6

290640232

STUD-M10X200

7

290842863

NUT-STUD M10

8

290841708

SCREW-HEX.FLAN

9

290854410

VALVE-EXHAUST

10

290931765

RING-O

11

290931670

GASKET-RUBBER

12

290854435

HOUSING-RAVE

13

205062560

SCREW-SOCKET HD.DIN.912A2

14

290931765

RING-O

15

290926220

RING-SUPPORT

16

290838260

SPRING-COMPRES

17

290260723

BELLOWS

18

290239048

SPRING-HOSE

19

290854445

VALVE-EXHAUST

20

290939137

SPRING-RAVE

21

290911555

COVER-VALVE

22

420241221

SCREW-ADJUSTER

23

420838082

CLIP-SPRING

24

290931653

GASKET

25

290979604

MANIFOLD-EXH.

26

290931488

GASKET

27

234101601

WASHER-LOCK HELICAL

28

290941483

SCREW-SOCKET

29

205006060

SCREW-SOCKET HD.DIN.912A2

30

290888131

SET-GASKET

31

290888136

SET-GASKET CYL

32

293800060

LOCTITE-243

33

413707000

DOW CORNING 111

34

290850460

RING-O

35

420838253

CLAMP-SPRING

36

234000600

WASHER-FLAT DIN.433A2

37

273000170

SUPP-DUCT

38

273000169

SUPP-DUCT

39

273000165

PAD-PROTECTOR

40

278001495

PLATE-GROUND

41

278001512

INSULATOR
