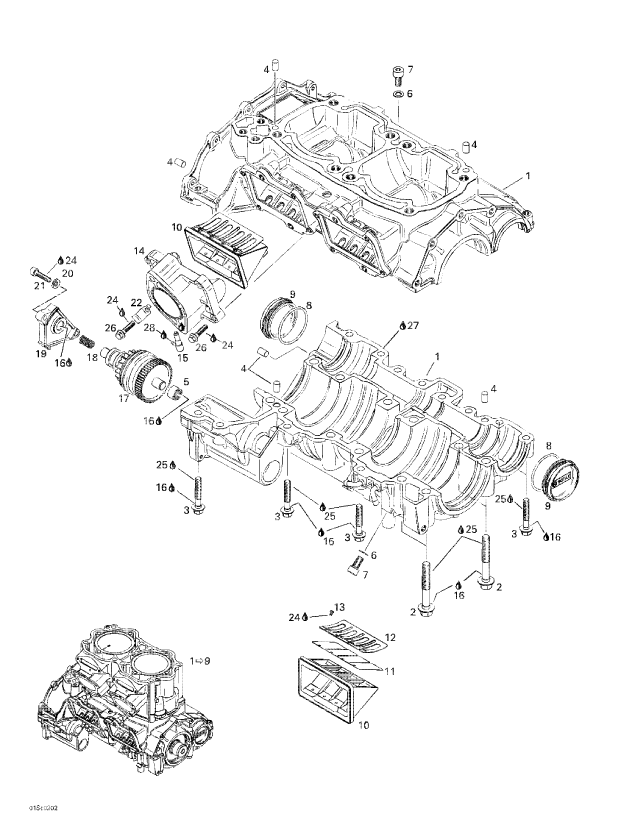

1

290094703

SHORT BLOCK 947

1

290887754

CRANKCASE-ASSY

2

290941333

SCREW-HEX.FLAN

3

290940638

SCREW-HEX.FLAN

4

290632010

PIN-CENTER

5

290232480

BUSHING-NEEDLE

6

420950141

RING-SEALING

7

205081660

SCREW-SOCKET HD.DIN.912A2

8

290230300

RING-O

9

290811200

COVER-BEARING

10

290924602

VALVE-REED ASS

11

290924612

REED-PEDAL

12

290924617

STOP-REED PEDAL

13

420941215

SCREW-OVAL HEAD M3X5

14

290867833

ADAP-CARB.

15

420956510

VALVE-CHECK

16

413707000

DOW CORNING 111

17

290888042

DRIVE-STARTER

18

290938204

SPRING

19

290811210

COVER-DRIVE ST

20

420845020

WASHER-SPRING

21

420840401

SCREW-ALLEN M6X22 DIN.912

22

290953330

SUPPORT-WIRE

23

290889150

SET-GASKET

24

293800060

LOCTITE-243

25

413702700

LOCTITE-515

26

290240033

SCREW-HEX.FLANGE DIN.6921

27

293800081

LOCTITE-5910

28

413711400

LOCTITE-648
