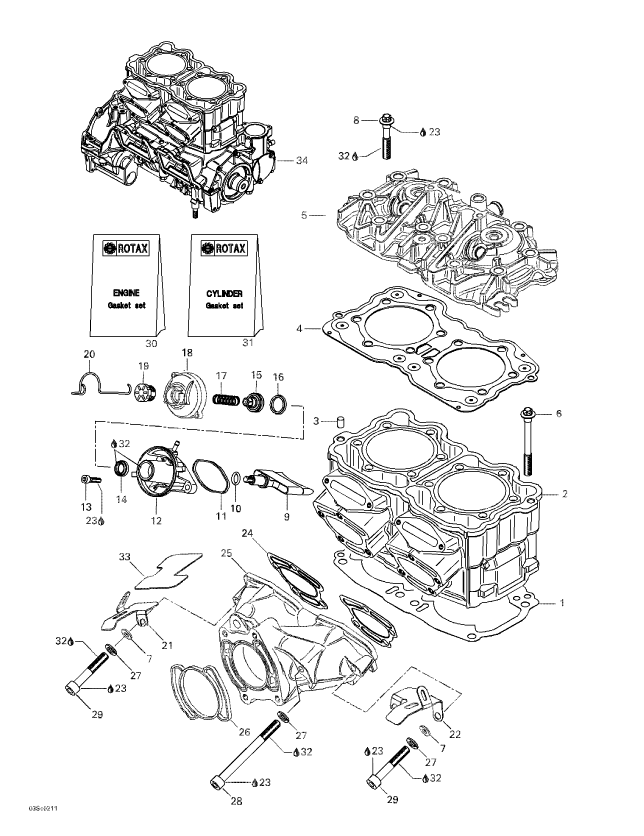

1

290931907

GASKET-CYL.

1

290931908

GASKET-CYL
Gasket

1

290931906

GASKET-CYL.
Gasket

1

290931905

GASKET-CYL.
Gasket

2

290613576

CYLINDER-BLACK

3

290632010

PIN-CENTER

4

290931706

GASKET-CYL HE

5

290613681

CYLINDER-HEAD ASSY

6

290640293

SCREW-TORX M10X94

7

234000600

WASHER-FLAT DIN.433A2

8

290640308

SCREW-HEXALOB.FL.

9

290854540

VALVE-EXHAUST

10

290250462

O RING

11

290931670

GASKET-RUBBER

12

290854555

HOUSING-RAVE

13

205062560

SCREW-SOCKET HD.DIN.912A2

14

290931970

SPRING-RAVE

15

290854560

PISTON-VALVE EXH.

16

290931950

RING-GROOVED

17

290939130

SPRING-RAVE

18

290911558

COVER-VALVE

19

290241222

SCREW-ADJUSTER

20

290838083

CLIP-SPRING

21

273000170

SUPP-DUCT

22

273000169

SUPP-DUCT

23

293800060

LOCTITE-243

24

290931653

GASKET

25

290979606

EXHAUST MANIFOLD SILVER

26

290931990

GASKET

27

234101601

WASHER-LOCK HELICAL

28

290941483

SCREW-SOCKET

29

205006060

SCREW-SOCKET HD.DIN.912A2

30

290888134

SET-GASKET

31

290888139

SET-GASKET CYL

32

413707000

DOW CORNING 111

33

273000165

PAD-PROTECTOR

34

290094706

BLOCK-SHORT947
