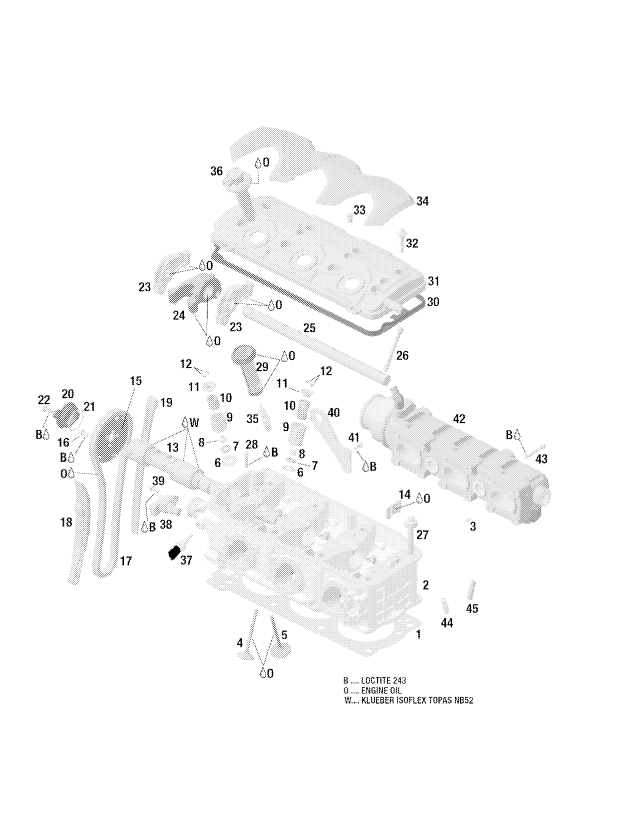

1

290950770

CYLINDER HEAD GASKET

2

290923937

CYLINDER HEAD ASSY

3

420929650

PIN-DRIVE 5X10

4

711254027

VALVE-EXHAUST 31MM

5

711254290

INTAKE VALVE

6

711627520

WASHER-THRUST

7

290854600

VALVE SPRING SUPPORT

8

711230510

SEAL-VALVE

9

711238180

SPRING-VALVE

10

290838280

VALVE SPRING INSIDE

11

711254280

RETAINER-SPRING VALVE

12

711253645

VALVE-COTTER

13

290837621

CAMSHAFT

14

711851692

CAMSHAFT GUIDE

15

290254306

TIMING GEAR 38T

16

290841339

SCREW

17

290898040

CAMSHAFT CHAIN

18

711236540

CHAIN TENSION GUIDE

19

711236500

CHAIN GUIDE

20

290660100

CAMSHAFT COVER

21

711950870

O RING

22

290641048

TORX FLANGE SCREW

23

711254326

ROCKERARM ASSY EXHAUST

24

711254315

ROCKERARM ASSY INLET

25

290854592

ROCKER-ARM SHAFT

26

711641080

SCREW-TORX

27

290641110

TORX-REDUCED SHAFT SCREW M11X1

28

290641238

TORX FLANGE SCREW

29

711851750

SPARK PLUG PIPE

30

290950820

VALVE COVER GASKET

31

290811580

VALVE COVER

32

290641268

SCREW-TORX

33

711641483

SCREW-TORX

34

290660160

VALVE COVER

35

707000246

PLUG-SPARK

36

290664020

IGNITION COIL

37

711222425

SENSOR-LIQUID

38

290664040

CAMSHAFT SENSOR

39

290641048

TORX FLANGE SCREW

40

290851615

TRANSPORT BRACKET PTO

41

290641048

TORX FLANGE SCREW

42

290973697

MANIFOLD

43

290641198

TORX FLANGE SCREW

44

290253922

VALVE GUIDE INLET

45

290253927

VALVE GUIDE EXHAUST

B

293800060

LOCTITE-243

W

293550021

GREASE-ISOFLEX
