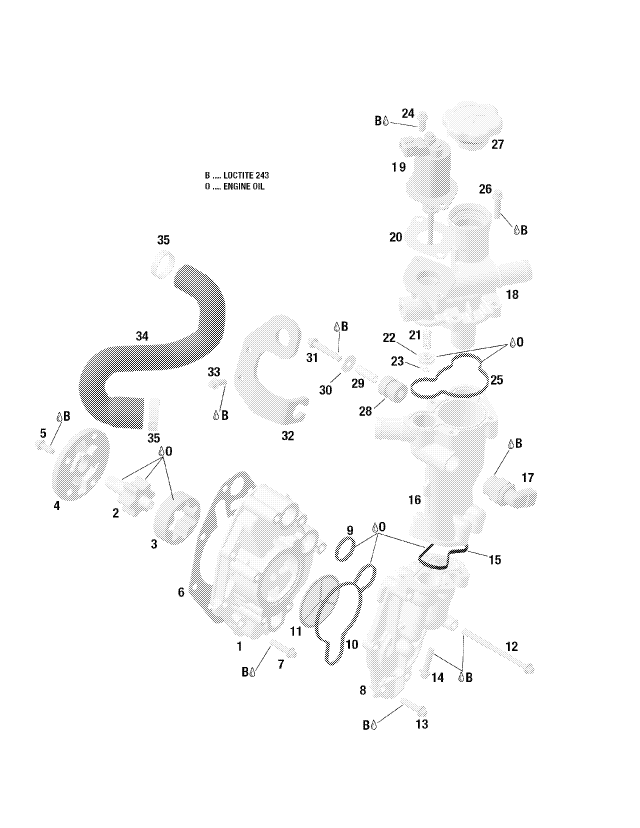

1

290811840

OIL PUMP HOUSING

2

290837542

PUMP SHAFT ASSY

3

290956675

OUTER ROTOR 16MM

4

290811850

OIL PUMP COVER

5

290641048

TORX FLANGE SCREW

6

290950970

GASKET

7

290641238

TORX FLANGE SCREW

8

290811891

OIL SIEVE COVER

9

290630240

SEAL RING

10

290950850

GASKET

11

711256570

SIEVE-OIL

12

290641228

TORX FLANGE SCREW

13

290641238

TORX FLANGE SCREW

14

290641238

TORX FLANGE SCREW

15

290630231

GASKET

16

290956761

OIL SEPARATOR HOUSING

17

290256880

OIL PRESSURE SWITCH

18

290811962

OIL SEPARATOR COVER

19

290956660

SHUT OFF SOLENOID

20

290630540

GASKET

21

290939250

COMPRESSION SPRING

22

290856055

VALVE DISC

23

290845620

RETAINING RING

24

290641048

TORX FLANGE SCREW

25

290630220

GASKET

26

290641238

TORX FLANGE SCREW

27

290956920

PLUG COVER

28

290660090

RUBBER BRACKET

29

290847970

SPACER

30

290827968

WASHER M6

31

290641258

TORX FLANGE SCREW

32

290851610

TRANSPORT BRACKET FRONT

33

290641048

TORX FLANGE SCREW

34

290956970

FORM HOSE

35

290851673

GEAR CLAMP

35

290851663

CLAMP
Gear

35

293800060

LOCTITE-243
Loctite
