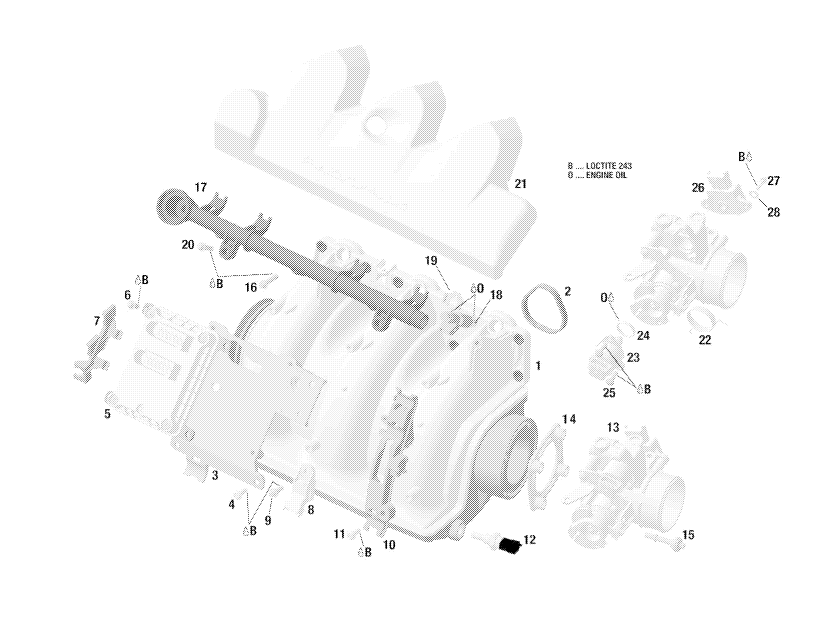

1

290867920

AIR INTAKE MANIFOLD

2

290950740

GASKET

3

290851520

BASE PLATE

4

290641048

TORX FLANGE SCREW

5

290664130

ELECTRONIC BOX

6

290641583

TORX FLANGE SCREW

7

290660400

CONNECTOR BRACKET

8

290274055

PRESSURE SENSOR

9

290641048

TORX FLANGE SCREW

10

290660410

WIRING SUPPORT

11

290641583

TORX FLANGE SCREW

12

711222425

SENSOR-LIQUID

13

290889020

THROTTLE BODY

14

290950792

RUBBER GASKET

15

290641268

SCREW-TORX

16

290641238

TORX FLANGE SCREW

17

290874391

FUEL RAIL ASSY

18

290874430

INJECTOR

19

290851530

INJECTOR CLIP

20

290641238

TORX FLANGE SCREW

21

290660171

STICK COIL COVER

23

420963050

IDLE BYPASS VALVE

24

420631780

O RING

26

270000251

SENSOR-THROTTL

27

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

28

234042600

WASHER-FLAT DIN.9021B-A2

28

293800060

LOCTITE-243
Loctite
