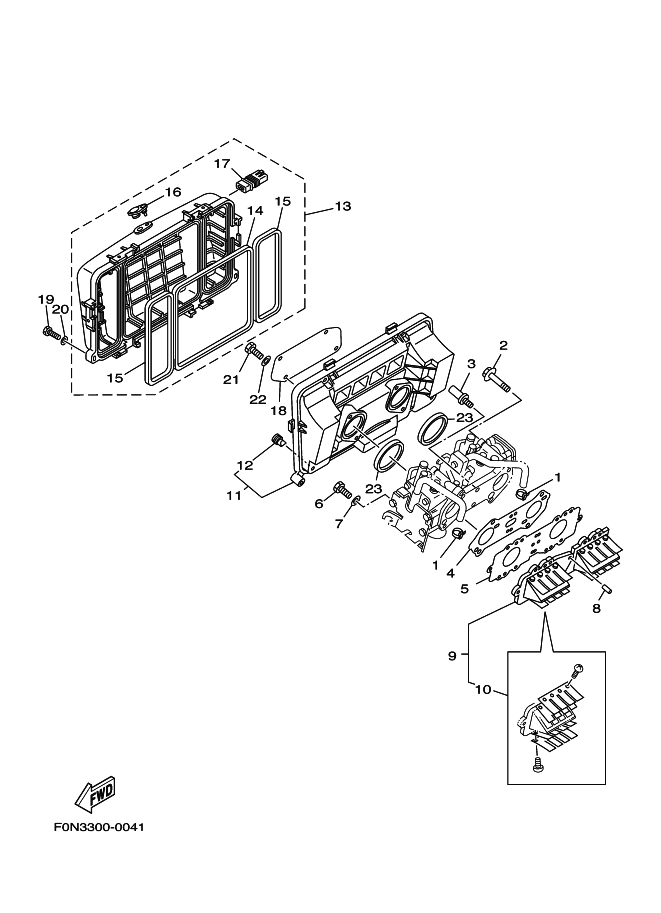

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
2 |
90105-08M86 |
BOLT, FLANGE
|
|
3 |
90109-06M00 |
BOLT
|
|
4 |
66E-13556-00 |
GASKET, MANIFOLD
|
|
5 |
66E-13624-10-94 |
PLATE,REED VALVE
|
|
6 |
97013-06025 |
ﾎﾞﾙﾄ
|
|
7 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
8 |
93606-19M23 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
9 |
66E-13610-00 |
REED VALVE ASSY
|
|
10 |
66E-W0004-00 |
REED SET
|
|
11 |
66E-1441E-00 |
COVER, CLEANER CASE 2
|
|
12 |
66E-42717-00 |
RUBBER, SEAL 2
|
|
13 |
66E-14480-11 |
COVER SUB ASSY
|
|
14 |
66E-14457-10 |
SEAL
|
|
15 |
66E-14452-00 |
SEAL
|
|
16 |
66E-14435-00 |
GROMMET
|
|
17 |
66E-13898-11 |
HOLDER
|
|
18 |
66E-14451-00 |
ELEMENT, AIR CLEANER
|
|
19 |
97095-06035 |
ﾎﾞﾙﾄ
|
|
20 |
92995-06600 |
ﾜﾂｼﾔ
|
|
21 |
97013-06045 |
BOLT
|
|
22 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
23 |
66E-13473-00 |
O-RING
|
|
|
