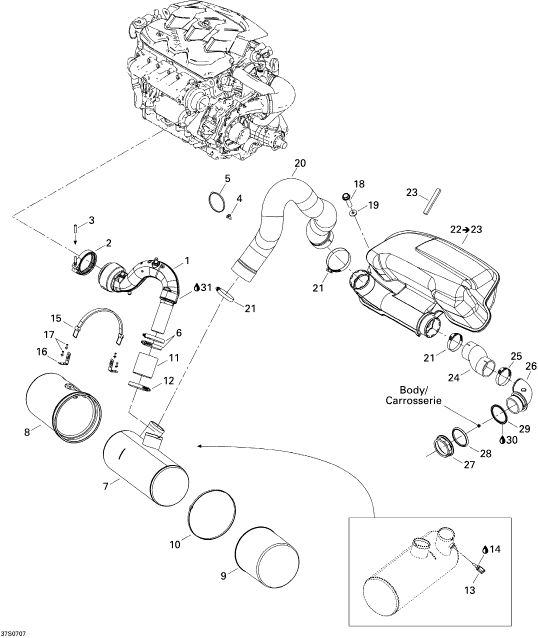

1

274001049

EXHAUST PIPE

2

274000959

EXHAUST CLAMP

3

415080200

POLYURETHANE HOSE

4

293730040

DART-MOUNT

5

293750008

TIE-RAP 350MM

6

293650179

CLAMP-TRIDON

7

274001095

MUFFLER

8

274001343

MUFFLER COVER

9

274001344

COVER-MUFFLER

10

293750020

TIE-RAP 838MM

11

274001302

HOSE-EXHAUST

12

293650179

CLAMP-TRIDON

13

278001016

SENSOR-LIQUID

14

293800038

LOCTITE-518

15

293850036

STRAP-FUEL TANK

16

293850076

CLIP-STRAP 90

17

293150043

RIVET-POP 3/16

18

243162560

SCREW-PLASTITE HEX WR

19

234082600

WASHER-FLAT DIN.9021B-A2

20

274001297

HOSE-EXHAUST

21

293650179

CLAMP-TRIDON

22

274001366

RH RESONATOR

23

293200003

SEAL-TRAY

24

274001298

HOSE-EXHAUST

25

293650179

CLAMP-TRIDON

26

274000542

OUTLET-EXHAUST

27

274000224

NUT-72MM

28

274000225

WASHER-STABILIZING

29

293250041

GASKET

30

296000309

SEAL-SILICONE

31

293800090

SEALANT
