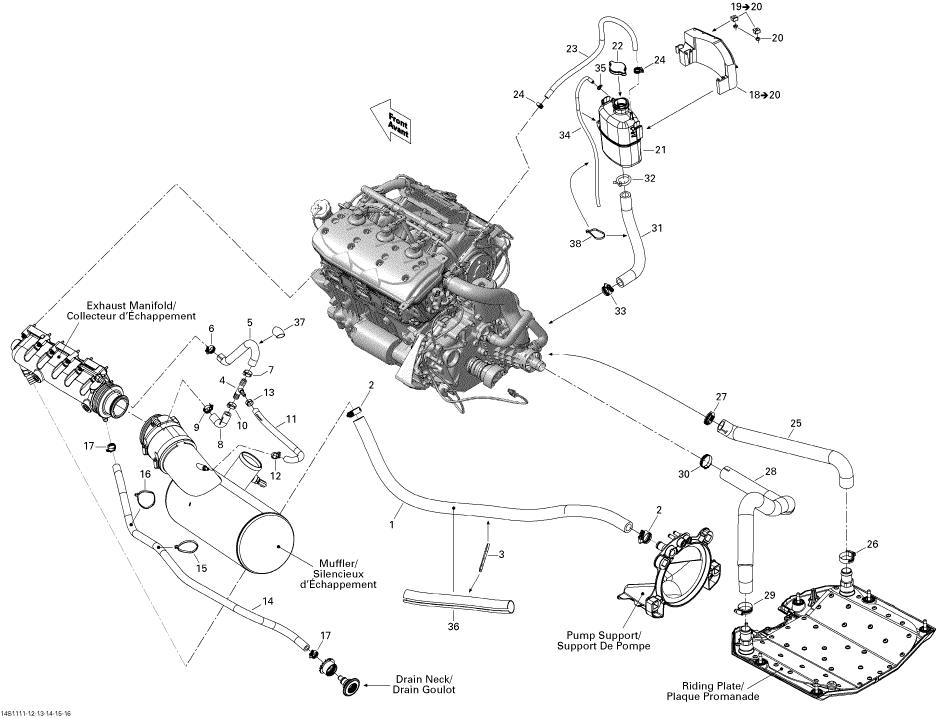

1

276000158

HOSE-19MM (PC=1M)

2

293650051

CLAMP-TRIDON

3

293750008

TIE-RAP 350MM

4

293710116

FITTING-T

5

276000244

HOSE-FORMED

6

293650172

HOSE CLAMP

7

293650012

CLAMP-OETIKER

8

276000245

HOSE-FORMED

9

293650172

HOSE CLAMP

10

293650012

CLAMP-OETIKER

11

276000246

HOSE-FORMED

12

293650171

HOSE CLAMP

13

293650030

CLAMP-OETIKER 185

14

276000151

HOSE-12 5MM (PC=1M)

15

293750008

TIE-RAP 350MM

16

293750008

TIE-RAP 350MM

17

293650172

HOSE CLAMP

18

291003082

SUPPORT ASSY

19

269501166

HOUSING-NUT

20

232561200

NUT-STOP ELASTIC DIN985

21

276000086

TANK-COOLANT

22

276000100

PRESSURE CAP ASSY

23

204300184

HOSE-1/4

24

293650170

HOSE CLAMP

25

276000248

HOSE-RIGHT

26

293650185

CLAMP-TRIDON

27

293650185

CLAMP-TRIDON

28

276000249

HOSE-LEFT

29

293650185

CLAMP-TRIDON

30

293650185

CLAMP-TRIDON

31

276000099

HOSE-19MM

32

293650115

CLAMP-SPRING

33

293650019

CLAMP-TRIDON

34

415080200

POLYURETHANE HOSE

35

293750001

TIE-RAP 94MM

36

409902200

TUBING-25MM

37

XXX

38

414115200

TIE-RAP 180MM
