見出番号
部品番号
部品名
数量

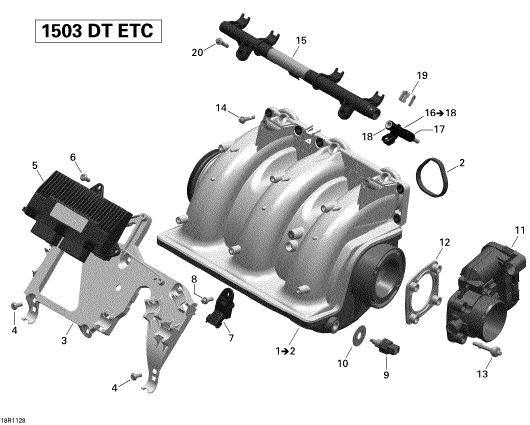

1
420867921
AIR INTAKE MANIFOLD
2
420950740
GASKET
3
420460842
BASE PLATE
4
420641583
TORX FLANGE SCREW
5
420666436
ELECTRONIC BOX
6
7
420274057
PRESSURE SENSOR
8
420641048
9
420222423
TEMPERATURE SENSOR
10
420227987
THRUST WASHER
11
420892590
THROTTLE BODY SOCKET
12
420950792
RUBBER GASKET
13
420440560
SCREW-TORX
14
420641238
SCREW-TORX FLANGE
15
420874396
FUEL RAIL ASSY
16
420874836
INJECTOR
17
420431890
O-RING
18
420631220
19
420853030
CLIP
20
