純正パーツカタログよりご注文又はお見積

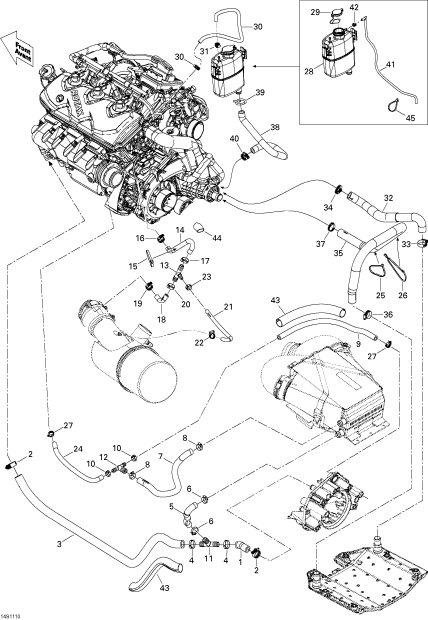

BRP　SEA DOO  2011年式  RXP-X 255 ＞ クーリング
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

276000158

HOSE-19MM (PC=1M)

2

293650051

CLAMP-TRIDON

3

276000158

HOSE-19MM (PC=1M)

4

293650099

CRIMP CLAMP

5

276000242

HOSE-FORMED

6

293650051

CLAMP-TRIDON

7

276000243

HOSE-FORMED

8

293650051

CLAMP-TRIDON

9

276000151

HOSE-12 5MM (PC=1M)

10

293650012

CLAMP-OETIKER

11

293710131

FITTING-T

12

293710132

FITTING-T

13

293710116

FITTING-T

14

276000244

HOSE-FORMED

15

414115200

TIE-RAP 180MM

16

293650172

HOSE CLAMP

17

293650012

CLAMP-OETIKER

18

276000245

HOSE-FORMED

19

293650172

HOSE CLAMP

20

293650012

CLAMP-OETIKER

21

276000246

HOSE-FORMED

22

293650171

HOSE CLAMP

23

293650030

CLAMP-OETIKER 185

24

276000151

HOSE-12 5MM (PC=1M)

25

293750008

TIE-RAP 350MM

26

293750008

TIE-RAP 350MM

27

293650172

HOSE CLAMP

28

276000086

TANK-COOLANT

29

276000100

PRESSURE CAP ASSY

30

204300184

HOSE-1/4

31

293650170

HOSE CLAMP

32

276000247

HOSE-RIGHT

33

293650185

CLAMP-TRIDON

34

293650185

CLAMP-TRIDON

35

276000251

HOSE-LEFT

36

293650185

CLAMP-TRIDON

37

293650185

CLAMP-TRIDON

38

276000253

HOSE-MOLDED

39

293650115

CLAMP-SPRING

40

293650019

CLAMP-TRIDON

41

415080200

POLYURETHANE HOSE

42

293750001

TIE-RAP 94MM

43

409902200

TUBING-25MM

44

276000162

SHRINK TUBING

45

414115200

TIE-RAP 180MM
