純正パーツカタログよりご注文又はお見積

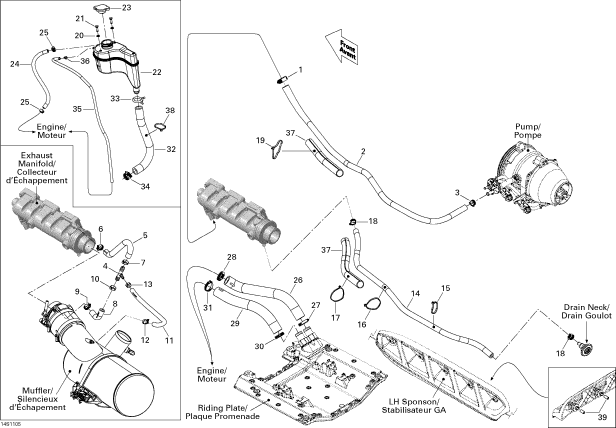

BRP　SEA DOO  2011年式  GTX 155 ＞ クーリング
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

293650051

CLAMP-TRIDON

2

276000276

HOSE-FORMED

3

293650172

HOSE CLAMP

4

293710116

FITTING-T

5

276000244

HOSE-FORMED

6

293650172

HOSE CLAMP

7

293650012

CLAMP-OETIKER

8

276000245

HOSE-FORMED

9

293650172

HOSE CLAMP

10

293650012

CLAMP-OETIKER

11

276000246

HOSE-FORMED

12

293650171

HOSE CLAMP

13

293650030

CLAMP-OETIKER 185

14

276000151

HOSE-12 5MM (PC=1M)

15

293750008

TIE-RAP 350MM

16

293750008

TIE-RAP 350MM

17

293750008

TIE-RAP 350MM

18

293650172

HOSE CLAMP

19

293750008

TIE-RAP 350MM

20

234061600

WASHER-FLAT DIN125A-A2

21

207362060

SCREW-HEX CAP DIN933A2

22

276000265

TANK-COOLANT

23

276000100

PRESSURE CAP ASSY

24

275500549

HOSE-1/4 (10M/PAC)

25

293650170

HOSE CLAMP

26

276000240

HOSE

27

293650185

CLAMP-TRIDON

28

293650185

CLAMP-TRIDON

29

276000241

HOSE

30

293650185

CLAMP-TRIDON

31

293650185

CLAMP-TRIDON

32

276000099

HOSE-19MM

33

293650115

CLAMP-SPRING

34

293650019

CLAMP-TRIDON

35

415080200

POLYURETHANE HOSE

36

293750001

TIE-RAP 94MM

37

409902200

TUBING-25MM

38

414115200

TIE-RAP 180MM

39

415080200

POLYURETHANE HOSE
