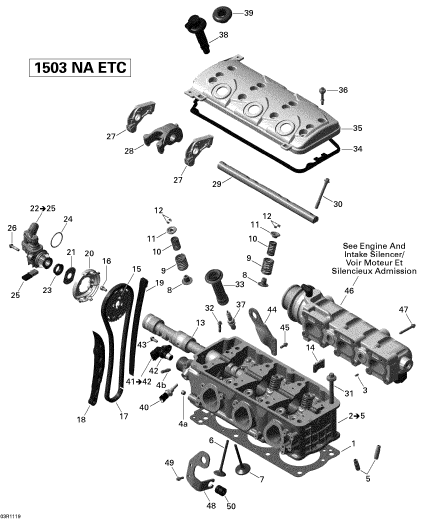

見出番号
部品番号
部品名
数量
1
420950770
CYLINDER HEAD GASKET
2
420613978
HEAD-CYLINDER
3
420929650
PIN-DRIVE 5X10
4a
420641323
SCREW
4b
420924720
HOSE NIPPLE
5
420253929
VALVE GUIDE
6
420254682
EXHAUST VALVE
7
420254293
INTAKE VALVE
8
420630200
VALVE STEM SEAL
9
420238180
VALVE SPRING
10
420838280
VALVE SPRING INSIDE
11
420254283
VALVE SPRING RETAINER
12
420253645
VALVE COTTER
13
420837851
CAMSHAFT
14
420851693
CAMSHAFT GUIDE
15
420254307
TIMING GEAR 38 TEETH
16
420840031
ALLEN SCREW M6
17
420898042
CAMSHAFT CHAIN
18
420236541
CHAIN TENSION GUIDE
19
420236501
CHAIN GUIDE
20
420660037
COVER
21
420627494
THRUST WASHER
22
420856502
VENT VALVE
23
420630125
V-RING
24
420950870
O-RING
25
420665950
TOPS SWITCH
26
420641238
SCREW-TORX FLANGE
27
420254329
ROCKER ARM EXHAUST
28
420254316
ROCKERARM ASSY INLET
29
420854594
ROCKER-ARM SHAFT
30
420641080
31
420641110
TORX-RED. SHAFT SCREW M11X147
32
33
420851751
SPARK PLUG PIPE
34
420950820
VALVE COVER GASKET
35
420811589
VALVE COVER
36
420440560
SCREW-TORX
37
707000246
PLUG-SPARK
38
420664020
【品番変更296000307】IGNITION COIL
39
420460830
SEALING CUP
40
278001016
SENSOR-LIQUID
41
420664043
CAMSHAFT SENSOR
42
420631890
O RING
43
420641048
TORX FLANGE SCREW
44
420851618
TRANSPORT BRACKET PTO
45
46
XXX
47
420641198
48
420951380
TRANSPORT BRACKET FRONT
49
50
420660090
RUBBER BRACKET
