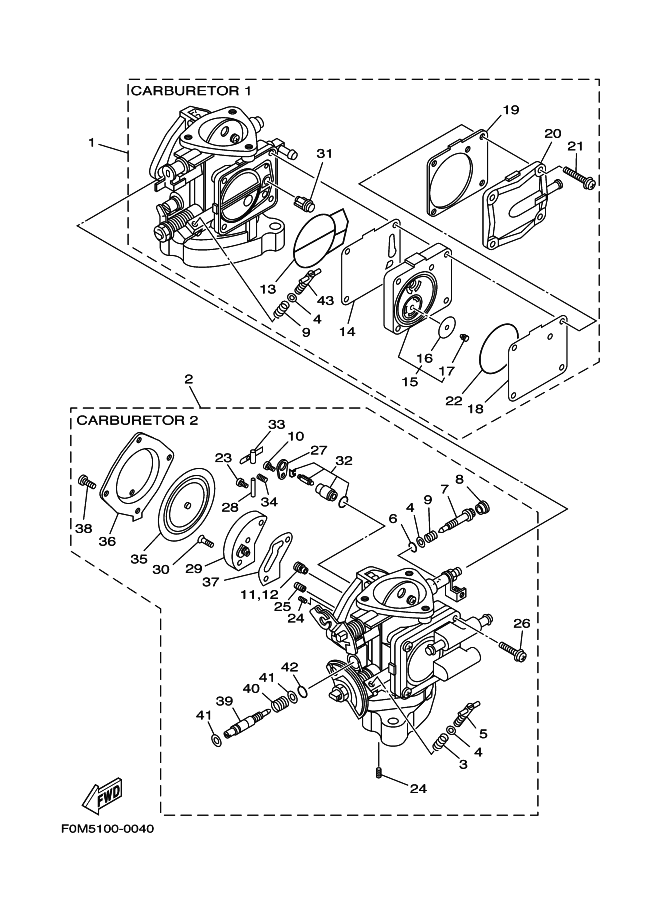

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
62T-14301-02 |
CARBURETOR ASSY 1
|
|
2 |
62T-14302-02 |
CARBURETOR ASSY 2
|
|
3 |
47X-14133-00 |
ｽﾌﾟﾘﾝｸﾞ,ｽﾛﾂﾄﾙｽﾄﾂﾌﾟ
CARBURETOR2
|
|
4 |
812-14235-00 |
ﾜﾂｼﾔ,ﾆ-ﾄﾞﾙ
|
|
5 |
6M6-14521-00 |
SCREW, ADJUST
CARBURETOR2
|
|
6 |
818-14147-00 |
【販売終了】 O-RING
|
|
7 |
6K8-14946-10 |
METERING NEEDLE
|
|
8 |
6K8-14471-10 |
ｷﾔﾂﾌﾟ,ｷﾔﾌﾞﾚﾀ
|
|
9 |
3KW-14932-00 |
ｽﾌﾟﾘﾝｸﾞ,ｽﾛﾂﾄﾙ 2
|
|
10 |
6M6-14503-00 |
ｽｸﾘｭｰ
|
|
11 |
3G2-14231-26 |
ｼﾞｴﾂﾄ,ﾒｲﾝ (#130)
CARBURETOR1
|
|
12 |
3G2-14231-24 |
JET, MAIN (#120)
CARBURETOR2
|
|
13 |
6K8-14564-00 |
O-ﾘﾝｸﾞ
|
|
14 |
6K8-24411-20 |
ﾀﾞｲﾔﾌﾗﾑ
CARBURETOR1
|
|
15 |
6M6-24413-01 |
BODY 2
CARBURETOR2
|
|
16 |
65U-24421-00 |
ﾊﾞﾙﾌﾞ,ﾁｴﾂｸ
CARBURETOR3
|
|
17 |
65U-24492-00 |
ﾌﾞｯｼｭ,ﾌｭｴﾙﾎﾟﾝﾌﾟ
CARBURETOR4
|
|
18 |
6K8-24421-10 |
ﾊﾞﾙﾌﾞ,ﾁｴﾂｸ
CARBURETOR5
|
|
19 |
6K8-24431-20 |
ｶﾞｽｹﾂﾄ,ﾌﾕｴﾙﾎﾟﾝﾌﾟ 1
CARBURETOR6
|
|
20 |
62T-14293-00 |
COVER 1
UR/CARBURETOR2
|
|
20 |
6K8-24452-10 |
ｶﾊﾞ-
UR/CARBURETOR1
|
|
21 |
97980-05330 |
ｽｸﾘﾕ,ｳｲｽﾞﾜﾂｼﾔ
CARBURETOR1
|
|
22 |
6K8-14563-00 |
O-ﾘﾝｸﾞ
CARBURETOR2
|
|
23 |
6K8-14503-02 |
ｽｸﾘｭｰ
|
|
24 |
6K8-14521-10 |
ｽｸﾘｭｰ
|
|
25 |
830-1423A-64 |
JET, MAIN (# 675)
|
|
26 |
97890-05018 |
SCREW, PAN HEAD
CARBURETOR2
|
|
27 |
6K8-14527-11 |
ﾌﾟﾚ-ﾄ
|
|
28 |
439-14186-00 |
ﾋﾟﾝ,ﾌﾛ-ﾄ
|
|
29 |
6R7-24412-01 |
BODY 1
|
|
30 |
6K8-14523-11 |
ｽｸﾘﾕ,ｽﾄﾂﾌﾟ
|
|
31 |
6R7-14569-00 |
ｽﾄﾚ-ﾅ
|
|
32 |
61X-14916-15 |
NEEDLE
|
|
33 |
6K8-14547-01 |
ｱ-ﾑ,ﾌﾛ-ﾄ
|
|
34 |
6R7-14253-00 |
ｽﾌﾟﾘﾝｸﾞ
|
|
35 |
6R7-14541-00 |
ﾀﾞｲﾔﾌﾗﾑ,ﾎﾟﾝﾌﾟ
|
|
36 |
6R7-14542-00 |
ﾎﾞﾃﾞ-,ﾎﾟﾝﾌﾟ 1
|
|
37 |
6K8-14536-11 |
ｶﾞｽｹﾂﾄ
|
|
38 |
97880-05012 |
ｽｸﾘﾕ,ﾊﾟﾝﾍﾂﾄﾞ
|
|
39 |
65U-14923-10 |
SCREW, PILOT
|
|
40 |
6K8-14589-00 |
ｽﾌﾟﾘﾝｸﾞ
|
|
41 |
822-14235-00 |
ﾜﾂｼﾔ,ﾆ-ﾄﾞﾙ
|
|
42 |
583-14561-00 |
O-ﾘﾝｸﾞ
|
|
43 |
6K8-14521-00 |
SCREW, ADJUST
CARBURETOR1
|
|
|
