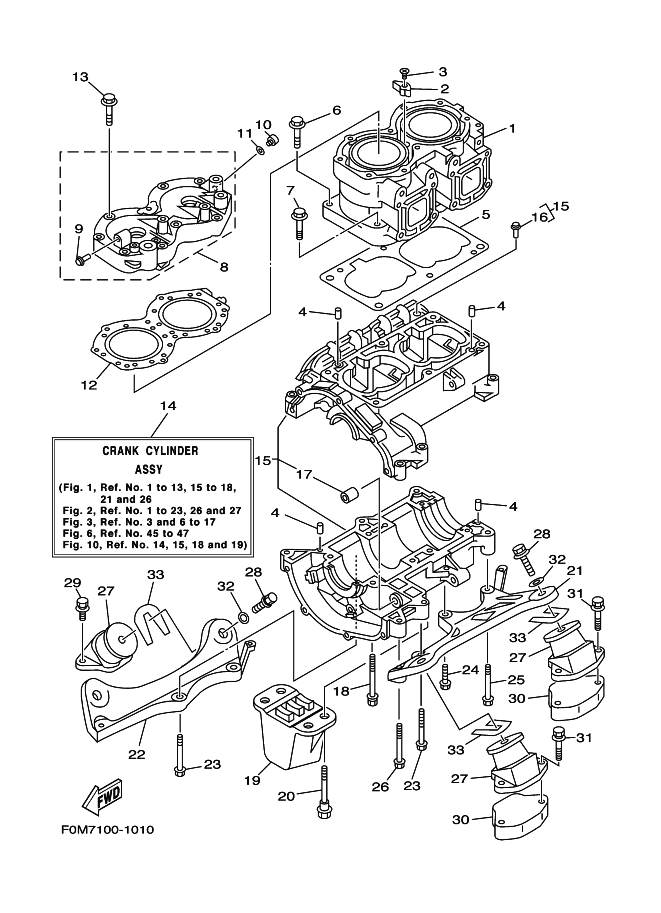

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
62T-11311-00-94 |
CYLINDER 1
|
|
2 |
6E5-11325-00 |
ｱﾉ-ﾄﾞ
|
|
3 |
98780-04015 |
ｽｸﾘﾕ,ﾌﾗﾂﾄﾍﾂﾄﾞ
|
|
4 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
5 |
6M6-11351-A2 |
ｶﾞｽｹﾂﾄ,ｼﾘﾝﾀﾞ
|
|
6 |
90119-10M56 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
7 |
90119-10M07 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
8 |
62T-11111-00-94 |
HEAD, CYLINDER 1
|
|
9 |
6K8-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
10 |
90340-08M04 |
PLUG, STRAIGHT SCREW
|
|
11 |
90430-08020 |
.GASKET
|
|
12 |
62T-11181-00 |
GASKET, CYLINDER HEAD 1
|
|
13 |
90119-08M96 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
14 |
62T-W0090-03-8P |
CRANK CYLINDER ASSY
|
|
15 |
62T-15100-00-8P |
ｸﾗﾝｸｹ-ｽｱｾﾝﾌﾞﾘ
|
|
16 |
62T-14251-10 |
ﾆﾂﾌﾟﾙ
|
|
17 |
90380-12M29 |
ﾌﾞﾂｼﾕ,ｿﾘﾂﾄﾞ
|
|
18 |
90119-08M55 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
19 |
63N-44532-01 |
STOPPER, UPPER MOUNT
|
|
20 |
90109-08M56 |
ﾎﾞﾙﾄ
|
|
21 |
6R7-21415-01-94 |
ﾌﾞﾗｹﾂﾄ,ﾌﾛﾝﾄｱﾂﾊﾟ 1
|
|
22 |
6R7-21425-01-94 |
ﾌﾞﾗｹﾂﾄ,ﾘﾔｱﾂﾊﾟ 1
|
|
23 |
90119-10M02 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
24 |
90119-10M00 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
25 |
90119-10M03 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
26 |
90119-10M01 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
27 |
6M6-44517-A1-5B |
MOUNT RUBBER
|
|
28 |
90119-089UT |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
YMUS
|
|
29 |
90119-089UU |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
YMUS
|
|
30 |
GJ1-6721B-00 |
【販売終了】SPACER,ENGINE MOUNT
|
|
31 |
0119-089UR |
YMUS
|
|
32 |
90201-099U3 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
YMUS
|
|
33 |
EU0-U7354-00-01 |
ｼﾑ(T=01)
UR/YMUS
|
|
33 |
EU0-U7354-00-03 |
ｼﾑ(T=03)
UR/YMUS
|
|
33 |
EU0-U7354-00-05 |
ｼﾑ(T=05)
UR/YMUS
|
|
33 |
EU0-U7354-00-10 |
ｼﾑ(T=10)
UR/YMUS
|
|
33 |
EU0-U7354-00-20 |
ｼﾑ(T=20)
UR/YMUS
|
|
|
