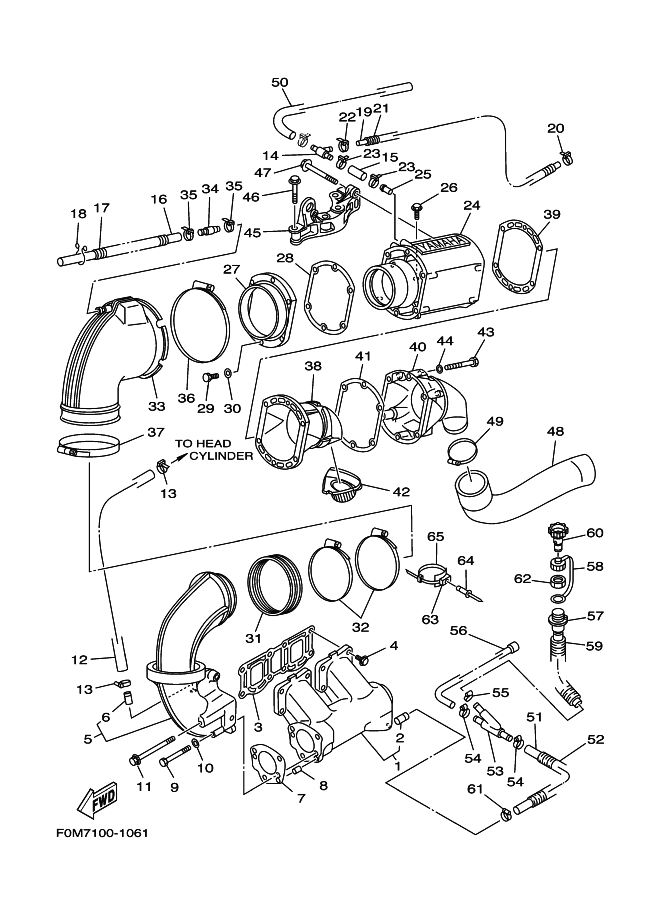

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
62T-14711-10-94 |
ﾏﾌﾗ-
|
|
2 |
6K8-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
3 |
62T-14613-00 |
GASKET, EXHAUST PIPE
|
|
4 |
90105-10M60 |
BOLT, FLANGE
|
|
5 |
62T-14712-00-94 |
ﾘﾝｸﾞ,ｼﾞﾖｲﾝﾄ
|
|
6 |
6K8-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
7 |
62T-14749-00 |
GASKET, MUFFLER DAMPER 2
|
|
8 |
93605-12M21 |
PIN, DOWEL
|
|
9 |
97013-08075 |
BOLT
|
|
10 |
92903-08600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
11 |
90119-08M11 |
BOLT, WITH WASHER
|
|
12 |
90445-14M24 |
ﾎ-ｽ(L260)
|
|
13 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
14 |
63N-24378-00 |
PIPE, JOINT 4
|
|
15 |
90445-21M02 |
HOSE (L50)
|
|
16 |
90445-14M21 |
HOSE (L890)
|
|
17 |
90446-20M31 |
HOSE
|
|
18 |
90464-15M11 |
CLAMP
|
|
19 |
90445-14M25 |
HOSE (L380)
|
|
20 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
21 |
90446-20M31 |
HOSE
|
|
22 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
23 |
90465-11M59 |
CLAMP
|
|
24 |
62T-14721-00-8S |
ﾏﾌﾗ- 2
|
|
25 |
62T-14485-10 |
PIPE, JOINT
|
|
26 |
90105-10M60 |
BOLT, FLANGE
|
|
27 |
62T-41113-00-8S |
ｱｳﾀｶﾊﾞ-,ｴｷｿﾞ-ｽﾄ
|
|
28 |
62T-41114-01 |
GASKET, EXHAUST OUTER COVER
|
|
29 |
97013-06025 |
ﾎﾞﾙﾄ
|
|
30 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
31 |
62T-14625-00 |
JOINT, EXHAUST 2
|
|
32 |
90450-99M06 |
HOSE CLAMP ASSY
|
|
33 |
62T-14615-01 |
JOINT, EXHAUST 1
|
|
34 |
6R3-24377-00 |
PIPE, JOINT 3
|
|
35 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
36 |
90450-99M01 |
HOSE CLAMP ASSY
|
|
37 |
90450-99M02 |
HOSE CLAMP ASSY
|
|
38 |
62T-41121-00-8S |
ｲﾝﾅｶﾊﾞｰ,ｴｷﾞｿﾞｰｽﾄ
|
|
39 |
62T-41122-00 |
GASKET, EXHAUST INNER COVER
|
|
40 |
62T-41123-01-8S |
ｱｳﾀｶﾊﾞｰ,ｴｷﾞｿﾞｰｽﾄ
|
|
41 |
62T-41124-00 |
GASKET, EXHAUST OUTER COVER
|
|
42 |
63N-15761-00 |
SEAL, RUBBER 1
|
|
43 |
97013-06070 |
BOLT
|
|
44 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
45 |
62T-14771-00 |
ｽﾃ-,ﾏﾌﾗ- 1
|
|
46 |
90119-10M17 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
47 |
90105-10M88 |
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
|
48 |
63N-14752-30 |
PIPE, OUTLET
|
|
49 |
90450-70M03 |
HOSE CLAMP ASSY
|
|
50 |
90445-21M00 |
HOSE (L1390)
|
|
51 |
90445-14M10 |
HOSE (L500)
|
|
52 |
90446-20M65 |
ﾎｰｽ(L445)
|
|
53 |
64X-12581-00 |
ｼﾞﾖｲﾝﾄ,ﾎ-ｽ 1
|
|
54 |
90450-14M05 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
55 |
90450-18M09 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
56 |
65R-12564-00 |
PIPE, WATER
|
|
57 |
64T-12580-00 |
ｼﾞﾖｲﾝﾄｱｾﾝﾌﾞﾘ
|
|
58 |
682-84385-01 |
ｷﾔﾂﾌﾟ 1
|
|
59 |
90446-24M89 |
ﾎ-ｽ(L420)
|
|
60 |
67X-12590-10 |
CONDUCTION ASSY
FOR-JPN
|
|
61 |
90601-118UF |
ﾊﾞﾝﾄﾞ,ﾎｰｽ18
YMUS
|
|
62 |
EU0-61652-00 |
ﾛ-ﾌﾟﾎ-ﾙﾅﾂﾄ
|
|
63 |
90600-91736 |
ｸﾗﾝﾌﾟｺﾝﾌﾟﾘｰﾄ
|
|
64 |
90267-489U7 |
RIVET, BLIND
YMUS
|
|
65 |
90464-32801 |
ｸﾗﾝﾌﾟ
YMUS
|
|
|
