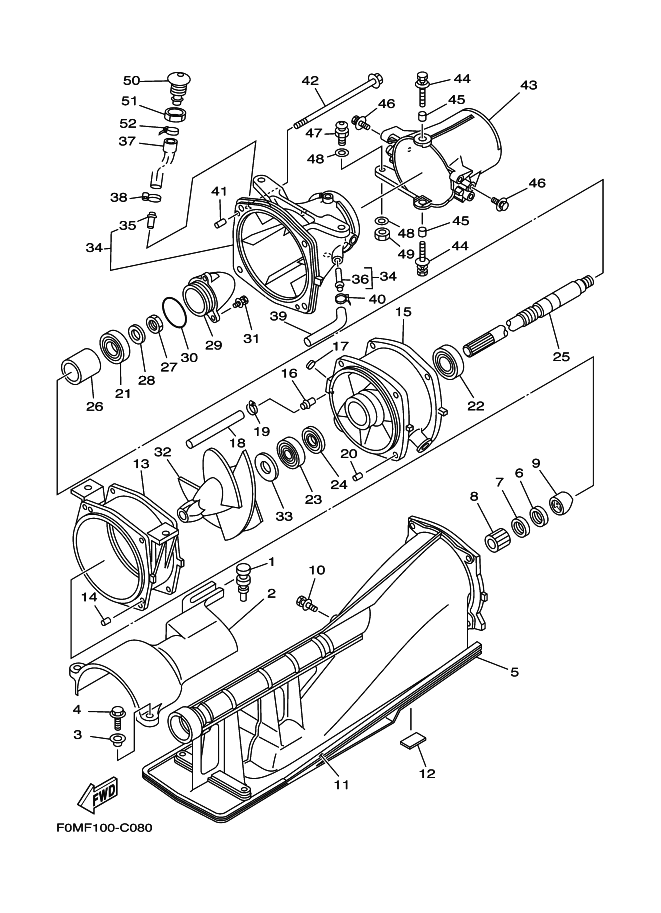

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
90480-06M46 |
ｸﾞﾛﾒﾂﾄ
|
|
2 |
65R-R1381-00 |
COVER
YMUS
|
|
3 |
90387-06M60 |
COLLAR
|
|
4 |
90119-069UD |
BOLT, WITH WASHER
YMUS
|
|
5 |
65U-R1311-00 |
【販売終了】DUCT, INTAKE
YMUS
|
|
6 |
93102-17M49 |
ｵｲﾙ ｼ-ﾙ
|
|
7 |
93102-17M50 |
ｵｲﾙ ｼ-ﾙ
|
|
8 |
65V-45318-00 |
BUSHING, DRIVE SHAFT
|
|
9 |
65U-R1348-01 |
SPACER
YMUS
|
|
10 |
90119-069UD |
BOLT, WITH WASHER
YMUS
|
|
11 |
6R8-51367-01 |
FELT, PACKING
|
|
12 |
63M-51368-00 |
FELT, PACKING
|
|
13 |
63M-51312-02-94 |
HOUSING, IMPELLER
|
|
14 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
15 |
63M-51315-02-94 |
DUCT, IMPELLER
|
|
16 |
65A-R1129-10 |
NIPPLE
YMUS
|
|
17 |
90331-12M05 |
PLUG
|
|
18 |
90445-18M03 |
HOSE (L108)
|
|
19 |
90601-118UF |
ﾊﾞﾝﾄﾞ,ﾎｰｽ18
YMUS
|
|
20 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
21 |
93306-304U1 |
ﾍﾞｱﾘﾝｸﾞ
|
|
22 |
93306-205U0 |
ﾍﾞｱﾘﾝｸﾞ
|
|
23 |
93102-25M34 |
ｵｲﾙｼ-ﾙ
|
|
24 |
93101-25M50 |
ｵｲﾙｼ-ﾙ
|
|
25 |
65R-45511-10 |
ｼﾔﾌﾄ,ﾄﾞﾗｲﾌﾞ
|
|
26 |
65V-45538-00 |
SPACER 1
|
|
27 |
9531P-16700 |
NUT
YMUS
|
|
28 |
9299R-16600 |
WASHER
YMUS
|
|
29 |
65A-R1326-00 |
CAP
YMUS
|
|
30 |
93210-46M16 |
O-ﾘﾝｸﾞ
|
|
31 |
90119-069UB |
BOLT, WITH WASHER
YMUS
|
|
32 |
65R-R1321-12 |
ｲﾝﾍﾟﾗ
YMUS
|
|
33 |
62T-51348-00 |
ｽﾍﾟ-ｻ
|
|
34 |
65R-R1318-00 |
NOZZLE
YMUS
|
|
35 |
65A-R1129-00 |
NIPPLE
YMUS
|
|
36 |
65A-R1334-01 |
NIPPLE,HOSE
YMUS
|
|
37 |
62E-51673-00 |
PIPE 1
|
|
38 |
90601-118UF |
ﾊﾞﾝﾄﾞ,ﾎｰｽ18
YMUS
|
|
39 |
90445-14898 |
HOSE (L270)
YMUS
|
|
40 |
90465-11829 |
ｸﾗﾝﾌﾟ
YMUS
|
|
41 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
42 |
90105-089U1 |
BOLT, FLANGE
YMUS
|
|
43 |
65R-R1313-01 |
【販売終了】NOZZLE,DEFLECTOR
YMUS
|
|
44 |
90119-089UE |
BOLT, WITH WASHER
YMUS
|
|
45 |
90387-08M08 |
ｶﾗ-
|
|
46 |
90119-089UE |
BOLT, WITH WASHER
YMUS
|
|
47 |
GH3-U146E-00 |
STUD, JOINT BALL
YMUS
|
|
48 |
90201-068M4 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
49 |
9538R-06700 |
ﾅﾂﾄ
YMUS
|
|
50 |
FN8-6269B-00 |
ｽﾊﾟｳﾄ
|
|
51 |
EU0-61652-00 |
ﾛ-ﾌﾟﾎ-ﾙﾅﾂﾄ
|
|
52 |
90600-91755 |
【在庫は販売店にご確認ください】ｸﾘﾂﾌﾟ
|
|
|
