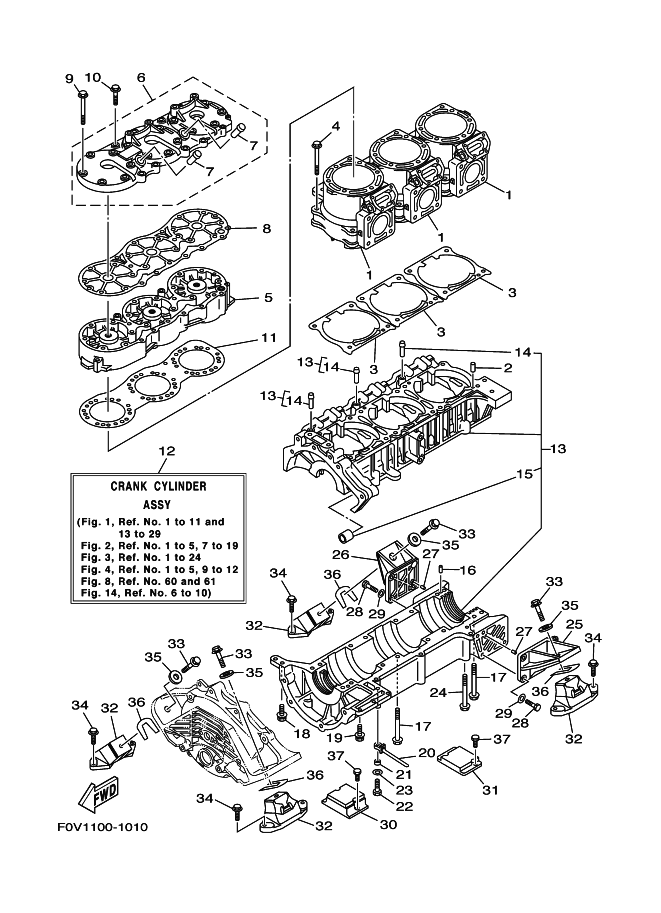

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
66V-11311-00-94 |
CYLINDER 1
|
|
2 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
3 |
66E-11351-01 |
GASKET, CYLINDER
|
|
4 |
90119-10M07 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
5 |
67X-11111-00-94 |
HEAD, CYLINDER 1
|
|
6 |
66V-11191-01-8P |
COVER, CYLINDER HEAD 1
|
|
7 |
66E-51129-00 |
NIPPLE
|
|
8 |
66V-11193-00 |
GASKET, HEAD COVER 1
|
|
9 |
90119-08M67 |
BOLT, WITH WASHER
|
|
10 |
90119-08MA0 |
BOLT, WITH WASHER
|
|
11 |
66V-11181-00 |
GASKET, CYLINDER HEAD 1
|
|
12 |
68N-W0090-11-8P |
ｸﾗﾝｸｼﾘﾝﾀﾞｱｾﾝﾌﾞﾘ
FOR-JPN
|
|
13 |
68N-15100-00-8P |
CRANKCASE ASSY
|
|
14 |
66V-14251-00 |
NIPPLE
|
|
15 |
90380-12M29 |
ﾌﾞﾂｼﾕ,ｿﾘﾂﾄﾞ
|
|
16 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
17 |
90119-08M63 |
BOLT, WITH WASHER
|
|
18 |
90119-08M18 |
BOLT, WITH WASHER
|
|
19 |
90119-06M13 |
BOLT, WITH WASHER
|
|
20 |
90465-12M53 |
CLAMP
|
|
21 |
90387-06M05 |
ｶﾗ-
|
|
22 |
97013-06040 |
BOLT
|
|
23 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
24 |
90119-06M84 |
BOLT, WITH WASHER
|
|
25 |
68N-21425-00-8P |
ﾌﾞﾗｹﾂﾄ,ﾘﾔｱﾂﾊﾟ 1
|
|
26 |
68N-21426-00-8P |
ﾌﾞﾗｹﾂﾄ,ﾘﾔｱﾂﾊﾟ 2
|
|
27 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
28 |
97013-08025 |
ﾎﾞﾙﾄ
|
|
29 |
92903-08600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
30 |
66V-44532-00-94 |
STOPPER, UPPER MOUNT
|
|
31 |
66V-44574-00-94 |
STOPPER LWR MOUNT RUBBER
|
|
32 |
68N-44517-00-8P |
ﾏｳﾝﾄ ﾗﾊﾞ-
|
|
33 |
90119-08827 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
YMUS
|
|
34 |
90119-089U6 |
BOLT, WITH WASHER
YMUS
|
|
35 |
90201-099U3 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
YMUS
|
|
36 |
EU0-U7354-00-01 |
ｼﾑ(T=01)
UR/YMUS
|
|
36 |
EU0-U7354-00-03 |
ｼﾑ(T=03)
UR/YMUS
|
|
36 |
EU0-U7354-00-05 |
ｼﾑ(T=05)
UR/YMUS
|
|
36 |
EU0-U7354-00-10 |
ｼﾑ(T=10)
UR/YMUS
|
|
36 |
EU0-U7354-00-20 |
ｼﾑ(T=20)
UR/YMUS
|
|
37 |
90101-06917 |
BOLT
|
|
|
