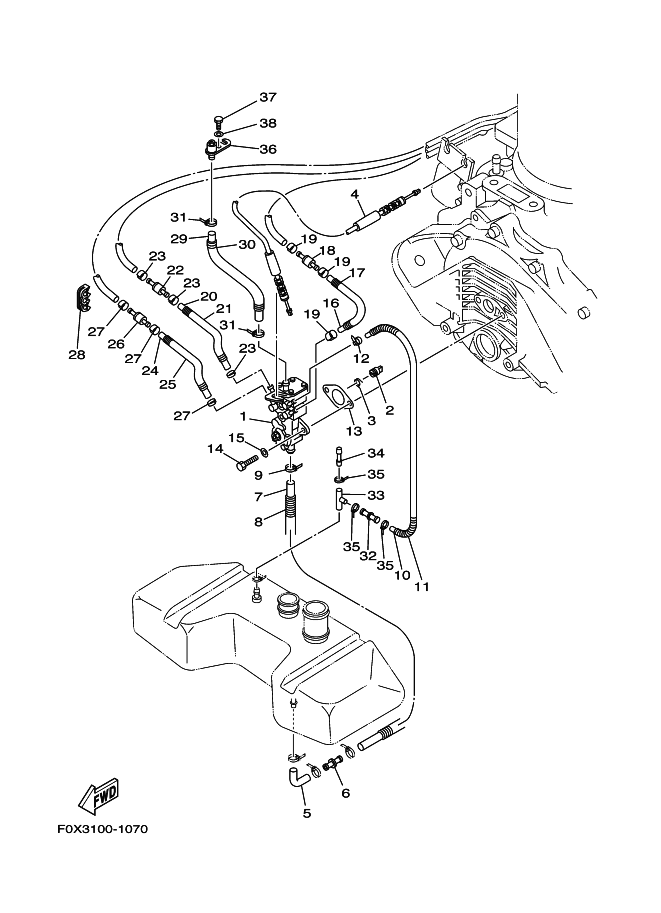

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
66V-13200-00 |
OIL INJECTION PUMP ASSY
|
|
2 |
65U-13132-00 |
JOINT
|
|
3 |
66E-13469-00 |
SPRING
|
|
4 |
66V-26320-00 |
PUMP CABLE ASSY
|
|
5 |
66V-13416-01 |
PIPE, OIL 1
|
|
6 |
66V-51142-00 |
CONNECTION
|
|
7 |
90445-11M33 |
HOSE
|
|
8 |
90446-17ME2 |
HOSE
|
|
9 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
10 |
90445-07M09 |
HOSE (L380)
|
|
11 |
90446-10ME3 |
HOSE
|
|
12 |
90468-02001 |
CLIP
|
|
13 |
63M-13116-00 |
GASKET, PUMP CASE
|
|
14 |
97095-06020 |
ﾎﾞﾙﾄ
|
|
15 |
92995-06600 |
ﾜﾂｼﾔ
|
|
16 |
90445-07007 |
HOSE
|
|
17 |
90446-10M82 |
HOSE
|
|
18 |
67X-13183-00 |
VALVE, CHECK
|
|
19 |
90468-02001 |
CLIP
|
|
20 |
90445-07007 |
HOSE
|
|
21 |
90446-10M82 |
HOSE
|
|
22 |
67X-13183-00 |
VALVE, CHECK
|
|
23 |
90468-02001 |
CLIP
|
|
24 |
90445-07007 |
HOSE
|
|
25 |
90446-10M82 |
HOSE
|
|
26 |
67X-13183-00 |
VALVE, CHECK
|
|
27 |
90468-02001 |
CLIP
|
|
28 |
90464-07M05 |
CLAMP
|
|
29 |
66V-24314-00 |
PIPE 4
|
|
30 |
90446-17ME8 |
HOSE
|
|
31 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
32 |
63M-13132-00 |
JOINT
|
|
33 |
63M-24378-00 |
PIPE, JOINT 4
|
|
34 |
6G8-24376-00 |
PIPE, JOINT 1
|
|
35 |
90465-11829 |
ｸﾗﾝﾌﾟ
|
|
36 |
66V-13185-00 |
BOLT, BREATHER
|
|
37 |
97095-06012 |
ﾎﾞﾙﾄ
|
|
38 |
92995-06600 |
ﾜﾂｼﾔ
|
|
|
