見出番号 |
部品番号 |
部品名 |
数量 |

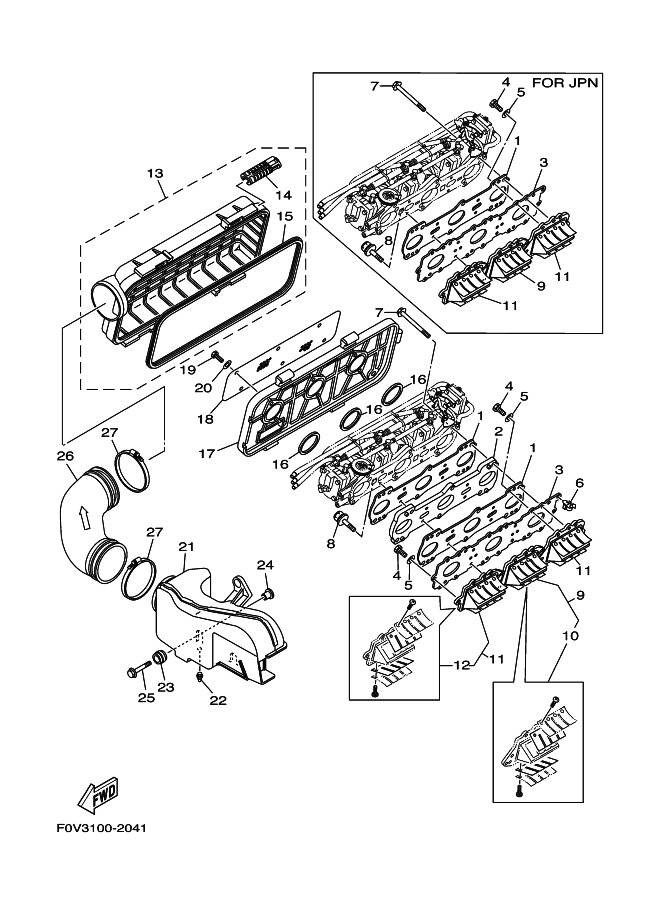

1 |
68N-13556-00 |
GASKET, MANIFOLD
FOR-JPN
|
|
4 |
97013-06025 |
ﾎﾞﾙﾄ
|
|
5 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
6 |
90464-14M55 |
CLAMP
|
|
7 |
90105-08041 |
BOLT, WASHER BASED
|
|
8 |
90110-06068 |
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝｿｹﾂﾄﾍﾂﾄﾞ
|
|
9 |
66V-13610-00 |
REED VALVE ASSY
|
|
10 |
66V-W0004-00 |
REED SET
|
|
11 |
66V-13620-00 |
REED VALVE ASSY
|
|
12 |
66V-W0004-00 |
REED SET
|
|
13 |
66V-14480-01 |
COVER SUB ASSY
|
|
14 |
66V-13898-00 |
HOLDER
|
|
15 |
66V-14457-00 |
SEAL
|
|
16 |
66E-13473-00 |
O-RING
|
|
17 |
66V-14284-00 |
COVER, CARBURETOR 2
|
|
18 |
66V-14451-00 |
ELEMENT, AIR CLEANER
|
|
19 |
97013-06045 |
BOLT
|
|
20 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
21 |
66V-14440-00 |
SILENCER ASSY, INTAKE
|
|
22 |
66E-42717-00 |
RUBBER, SEAL 2
|
|
23 |
90480-22M15 |
ｸﾞﾛﾒﾂﾄ
|
|
24 |
90387-08M37 |
ｶﾗ-
|
|
25 |
90119-08M22 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
26 |
66V-14419-00 |
PIPE
|
|
27 |
90460-99M23 |
CLAMP, HOSE
|
|
|
