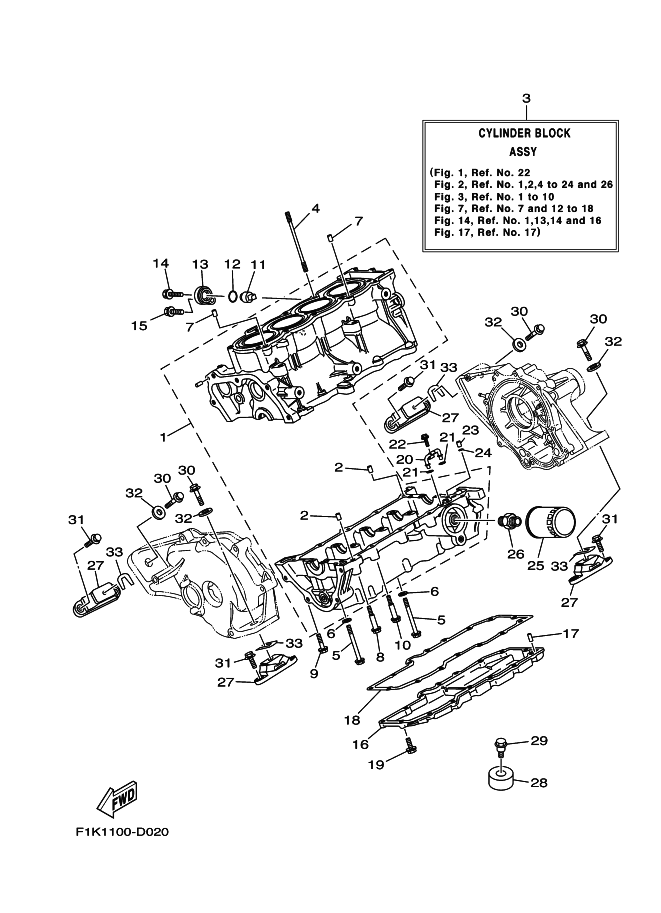

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
6D3-15100-00-94 |
ｸﾗﾝｸｹ-ｽｱｾﾝﾌﾞﾘ
|
|
2 |
99530-10014 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
3 |
6D3-W009B-00-94 |
ｼﾘﾝﾀﾞﾌﾞﾛﾂｸｱｾﾝﾌﾞﾘ
|
|
4 |
90116-10619 |
BOLT, STUD
|
|
5 |
90105-093A5 |
BOLT, FLANGE
|
|
6 |
90201-096J9 |
WASHER, PLATE
|
|
7 |
99530-10014 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
8 |
90109-06051 |
BOLT
|
|
9 |
90105-06033 |
BOLT, FLANGE
|
|
10 |
90105-06M17 |
BOLT, FLANGE
|
|
11 |
67F-11325-00 |
ANODE
|
|
12 |
67F-11328-00 |
ｸﾞﾛﾒﾂﾄ
|
|
13 |
69J-11327-00-94 |
COVER, ANODE
|
|
14 |
97595-06520 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
15 |
97595-08540 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
16 |
6B6-1310A-00-94 |
ﾊﾟﾝ,ｵｲﾙ
|
|
17 |
93603-14M15 |
ﾋﾟﾝ, ﾀﾞｳｴﾙ (6T5)
|
|
18 |
6B6-13557-00 |
ｶﾞｽｹﾂﾄ
|
|
19 |
97513-06520 |
BOLT, WITH WASHER
|
|
20 |
60E-13161-00 |
PIPE, DELIVERY 1
|
|
21 |
93210-06667 |
O-ﾘﾝｸﾞ
|
|
22 |
95027-06010 |
BOLT, FLANGE
|
|
23 |
99530-08012 |
PIN, DOWEL
|
|
24 |
93210-08001 |
O-ﾘﾝｸﾞ
|
|
25 |
5GH-13440-00 |
ELEMENT ASSY, OIL CLEANER
|
|
26 |
90401-20145 |
BOLT, UNION
|
|
27 |
67X-44517-10-94 |
MOUNT RUBBER
|
|
28 |
6D3-44574-00 |
ｽﾄﾂﾊﾟｰﾛﾜｰﾏｳﾝﾄﾗﾊﾞｰ
|
|
29 |
90109-06M92 |
ﾎﾞﾙﾄ
|
|
30 |
90119-089UR |
BOLT, WITH WASHER
YMUS
|
|
31 |
90119-08823 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
YMUS
|
|
32 |
90201-099U3 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
YMUS
|
|
33 |
EU0-U7354-00-01 |
ｼﾑ(T=01)
YMUS
|
|
33 |
EU0-U7354-00-03 |
ｼﾑ(T=03)
YMUS
|
|
33 |
EU0-U7354-00-05 |
ｼﾑ(T=05)
YMUS
|
|
33 |
EU0-U7354-00-10 |
ｼﾑ(T=10)
YMUS
|
|
33 |
EU0-U7354-00-20 |
ｼﾑ(T=20)
YMUS
|
|
|
