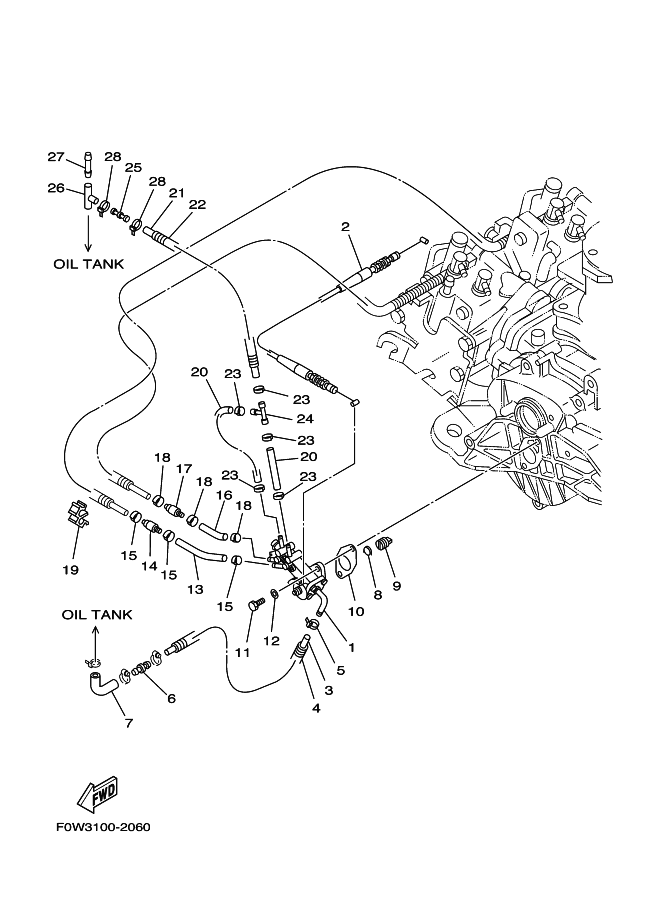

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
66E-13200-02 |
OIL INJECTION PUMP ASSY
|
|
2 |
66E-26320-00 |
PUMP CABLE ASSY
|
|
3 |
90445-11012 |
HOSE (L600)
|
|
4 |
90447-13002 |
HOSE, WITH SPRING
|
|
5 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
6 |
66V-51142-00 |
CONNECTION
|
|
7 |
66V-13416-01 |
PIPE, OIL 1
|
|
8 |
66E-13469-00 |
SPRING
|
|
9 |
65U-13132-00 |
JOINT
|
|
10 |
63M-13116-00 |
GASKET, PUMP CASE
|
|
11 |
97095-06020 |
ﾎﾞﾙﾄ
|
|
12 |
92995-06600 |
ﾜﾂｼﾔ
|
|
13 |
90445-07009 |
HOSE
|
|
14 |
67X-13183-00 |
VALVE, CHECK
|
|
15 |
90468-02001 |
CLIP
|
|
16 |
90445-07009 |
HOSE
|
|
17 |
67X-13183-00 |
VALVE, CHECK
|
|
18 |
90468-02001 |
CLIP
|
|
19 |
90464-07M20 |
CLAMP
|
|
20 |
90445-07M25 |
HOSE (L53)
|
|
21 |
90445-07002 |
HOSE (L720)
|
|
22 |
90447-07002 |
HOSE, WITH SPRING
|
|
23 |
90468-02001 |
CLIP
|
|
24 |
6E0-24378-00 |
PIPE, JOINT 4
|
|
25 |
63M-13132-00 |
JOINT
|
|
26 |
63M-24378-00 |
PIPE, JOINT 4
|
|
27 |
6G8-24376-00 |
PIPE, JOINT 1
|
|
28 |
90465-11829 |
ｸﾗﾝﾌﾟ
YMUS
|
|
|
