見出番号 |
部品番号 |
部品名 |
数量 |

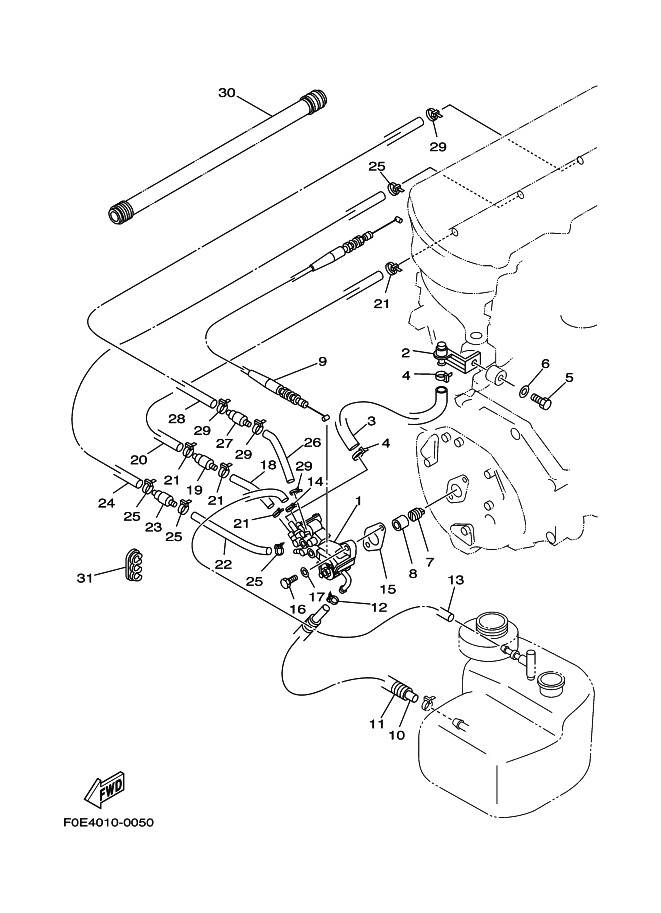

1 |
66H-13200-01 |
OIL INJECTION PUMP ASSY
|
|
2 |
66H-13185-00 |
BOLT, BREATHER
|
|
3 |
90445-11M41 |
HOSE (L190)
|
|
4 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
5 |
97095-08016 |
BOLT
|
|
6 |
92995-08100 |
WASHER
|
|
7 |
65U-13132-00 |
JOINT
|
|
8 |
65U-13554-00 |
RING, RUBBER
|
|
9 |
66H-26320-00 |
PUMP CABLE ASSY
|
|
10 |
90445-11M48 |
【販売終了】HOSE (L2100)
|
|
11 |
90446-17M75 |
HOSE
|
|
12 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
13 |
90445-07M52 |
HOSE (L2100)
|
|
14 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
15 |
63M-13116-00 |
GASKET, PUMP CASE
|
|
16 |
97095-06020 |
ﾎﾞﾙﾄ
|
|
17 |
92995-06600 |
ﾜﾂｼﾔ
|
|
18 |
90446-07M77 |
HOSE
|
|
19 |
6R3-13183-00 |
VALVE, CHECK
|
|
20 |
90446-07M35 |
HOSE
|
|
21 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
22 |
90446-07M77 |
HOSE
|
|
23 |
6R3-13183-00 |
VALVE, CHECK
|
|
24 |
90446-07M36 |
HOSE
|
|
25 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
26 |
90446-07M77 |
HOSE
|
|
27 |
6R3-13183-00 |
VALVE, CHECK
|
|
28 |
90446-07M74 |
HOSE
|
|
29 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
30 |
90446-24M79 |
HOSE
|
|
31 |
90464-07M05 |
CLAMP
|
|
|
