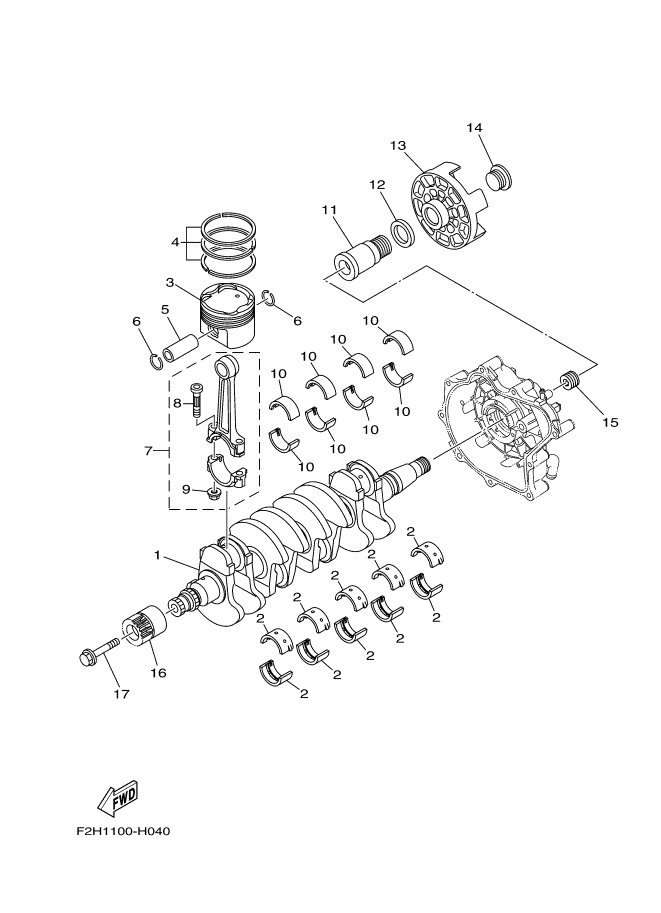

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
6S5-11411-00 |
CRANKSHAFT
|
|
2 |
6S5-11416-00 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｸﾗﾝｸｼﾔﾌﾄ1
UR/BROWN
|
|
2 |
6S5-11416-10 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｸﾗﾝｸｼﾔﾌﾄ1
UR/BLACK
|
|
2 |
6S5-11416-20 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｸﾗﾝｸｼﾔﾌﾄ1
UR/BLUE
|
|
2 |
6S5-11416-30 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｸﾗﾝｸｼﾔﾌﾄ1
UR/GREEN
|
|
2 |
6S5-11416-40 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｸﾗﾝｸｼﾔﾌﾄ1
UR/YELLOW
|
|
3 |
6BH-11631-00-B0 |
ﾋﾟｽﾄﾝ(STD)
|
|
4 |
6S5-11603-00 |
ﾋﾟｽﾄﾝﾘﾝｸﾞｾﾂﾄ(STD)
|
|
5 |
6S5-11633-00 |
ﾋﾟﾝ,ﾋﾟｽﾄﾝ
|
|
6 |
93450-24028 |
ｻ-ｸﾘﾂﾌﾟ
|
|
7 |
6BH-11650-00 |
ｺﾈｸﾃｲﾝｸﾞﾛﾂﾄﾞｱｾﾝﾌﾞﾘ
|
|
8 |
6S5-11654-00 |
ﾎﾞﾙﾄ,ｺﾈｸﾃｲﾝｸﾞﾛﾂﾄﾞ
|
|
9 |
90179-09379 |
ﾅﾂﾄ(11H)
|
|
10 |
6S5-11656-00 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｺﾝﾛﾂﾄﾞ
UR/BROWN
|
|
10 |
6S5-11656-10 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｺﾝﾛﾂﾄﾞ
UR/BLACK
|
|
10 |
6S5-11656-20 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｺﾝﾛﾂﾄﾞ
UR/BLUE
|
|
10 |
6S5-11656-30 |
ﾌﾟﾚ-ﾝﾍﾞｱﾘﾝｸﾞ,ｺﾝﾛﾂﾄﾞ
UR/GREEN
|
|
11 |
6S5-17572-01 |
ｼﾔﾌﾄ,ﾄﾗﾝｽﾌｱ
|
|
12 |
6S5-12289-00 |
ﾜﾂｼﾔ
|
|
13 |
6S5-45813-01-94 |
ﾌﾗﾝｼﾞ,ｶﾂﾌﾟﾘﾝｸﾞ
|
|
14 |
6S5-17525-01 |
ﾎﾙﾀﾞ2
|
|
15 |
6S5-11459-01 |
ﾅﾂﾄ,ｽﾍﾟｼﾔﾙ
|
|
16 |
6BH-17586-00 |
ｷﾞｱ, ﾄﾗﾝｽﾌｱ ﾄﾞﾗｲﾌﾞ
|
|
17 |
6S5-17031-00 |
ﾎﾞﾙﾄ
|
|
|
