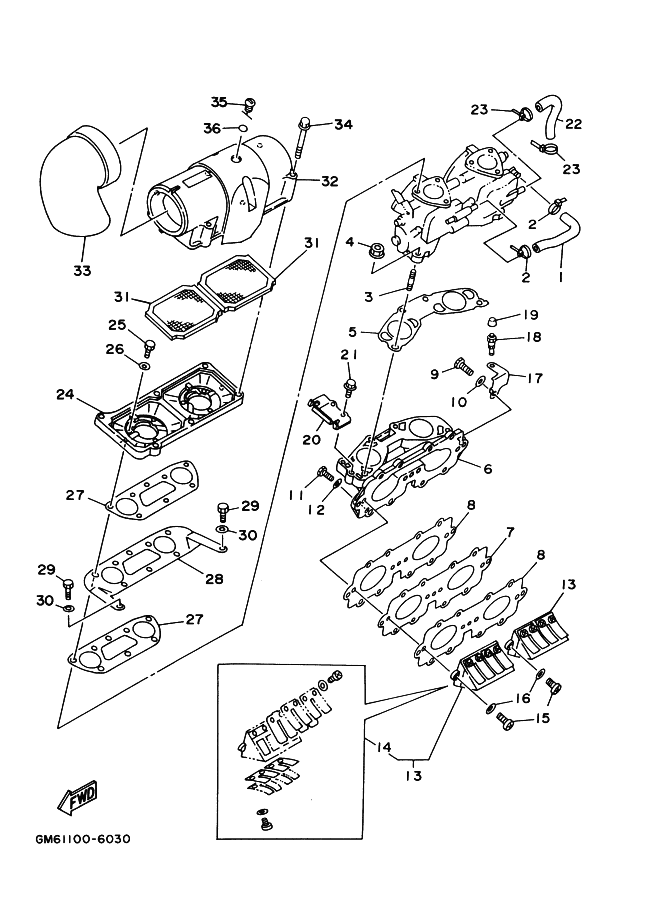

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
62T-24313-00 |
PIPE 3
|
|
2 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
3 |
90116-06M55 |
BOLT, STUD
|
|
4 |
90179-08M15 |
ﾅﾂﾄ
|
|
5 |
62T-13556-00 |
ｶﾞｽｹﾂﾄ,ﾏﾆﾎ-ﾙﾄﾞ
|
|
6 |
62T-13555-00-94 |
MANIFOLD,INTAKE
|
|
7 |
62T-13624-00 |
ﾌﾟﾚ-ﾄ,ﾘｰﾄﾞﾊﾞﾙﾌﾞ
|
|
8 |
62T-13566-00 |
ｶﾞｽｹﾂﾄ
|
|
9 |
97014-06035 |
BOLT
|
|
10 |
92990-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
11 |
97013-06025 |
ﾎﾞﾙﾄ
|
|
12 |
92990-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
13 |
62T-13610-00 |
ﾘ-ﾄﾞﾊﾞﾙﾌﾞｱｾﾝﾌﾞﾘ
|
|
14 |
62T-W0004-00 |
ﾘ-ﾄﾞｾﾂﾄ
|
|
15 |
98580-05016 |
SCREW, PAN HEAD
|
|
16 |
92990-05600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
17 |
62T-14243-00 |
PLATE
|
|
18 |
61L-5169A-00 |
ﾆﾂﾌﾟﾙ,ｸﾞﾘｽ
|
|
19 |
663-45119-00 |
ｷﾔﾂﾌﾟ,ｸﾞﾘ-ｽﾆﾂﾌﾟﾙ
|
|
20 |
62T-14527-01 |
PLATE
|
|
21 |
97513-06516 |
BOLT, WITH WASHER
|
|
22 |
62T-24314-00 |
PIPE 4
|
|
23 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
24 |
62T-14284-10-98 |
COVER, CARBURETOR 2
|
|
25 |
97013-06020 |
ﾎﾞﾙﾄ
|
|
26 |
92990-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
27 |
62T-13674-00 |
ｶﾞｽｹﾂﾄ,ｴｱ-ｸ-ﾗ-ｶﾊﾞ- 1
|
|
28 |
62T-14255-00 |
ﾌﾟﾚ-ﾄ
|
|
29 |
97013-06012 |
ﾎﾞﾙﾄ
|
|
30 |
92990-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
31 |
62T-14451-00 |
ｴﾚﾒﾝﾄ,ｴｱｸﾘ-ﾅ
|
|
32 |
62T-14283-00 |
COVER, CARBURETOR 1
|
|
33 |
62T-14419-00 |
ﾊﾟｲﾌﾟ
|
|
34 |
90105-05M46 |
BOLT, WASHER BASED
|
|
35 |
62T-14435-00 |
ｸﾞﾛﾒﾂﾄ
|
|
36 |
93210-13M63 |
O-ﾘﾝｸﾞ
|
|
|
