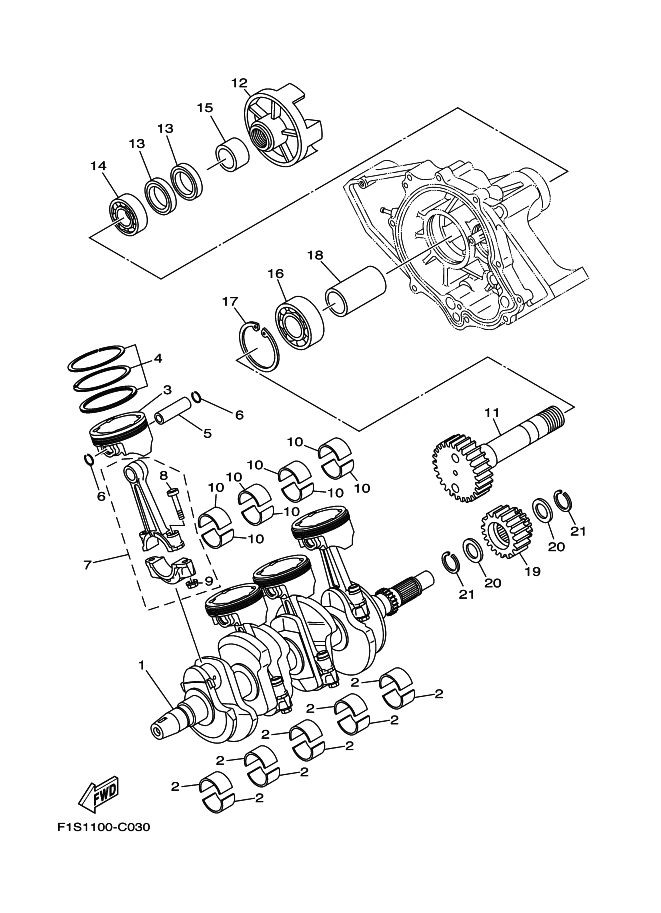

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60E-11411-11 |
ｸﾗﾝｸｼﾔﾌﾄ
|
|
2 |
60E-11416-00 |
PLANE BEARING, CRANKSHAFT 1
UR/BROWN
|
|
2 |
60E-11416-10 |
PLANE BEARING, CRANKSHAFT 1
UR/BLACK
|
|
2 |
60E-11416-20 |
PLANE BEARING, CRANKSHAFT 1
UR/BLUE
|
|
2 |
60E-11416-30 |
PLANE BEARING, CRANKSHAFT 1
UR
|
|
2 |
60E-11416-40 |
PLANE BEARING, CRANKSHAFT 1
UR/YELLOW
|
|
3 |
6B6-11631-00-B0 |
ﾋﾟｽﾄﾝ (STD)
|
|
4 |
6B6-11603-00 |
ﾋﾟｽﾄﾝﾘﾝｸﾞｾﾂﾄ (STD)
|
|
5 |
4XV-11633-00 |
PIN, PISTON
|
|
6 |
90468-12069 |
CLIP
|
|
7 |
5PW-11650-00 |
CONNECTING ROD ASSY
|
|
8 |
5JW-11654-00 |
ﾎﾞﾙﾄ,ｺﾈｸﾃｲﾝｸﾞﾛﾂﾄﾞ
|
|
9 |
90179-08327 |
ﾅﾂﾄ
|
|
10 |
60E-11656-00 |
PLANE BEARING, CONNECTING ROD
UR/BROWN
|
|
10 |
60E-11656-10 |
PLANE BEARING, CONNECTING ROD
UR/BLACK
|
|
10 |
60E-11656-20 |
PLANE BEARING, CONNECTING ROD
UR/BLUE
|
|
10 |
60E-11656-30 |
PLANE BEARING, CONNECTING ROD
UR
|
|
11 |
6B6-17572-00 |
ｼﾔﾌﾄ, ﾄﾗﾝｽﾌｱ
|
|
12 |
66E-45813-10-94 |
FLANGE, COUPLING
|
|
13 |
93101-35004 |
ｵｲﾙ ｼ-ﾙ
|
|
14 |
93306-07801 |
ﾍﾞｱﾘﾝｸﾞ(55X)
|
|
15 |
6B6-11478-00 |
ｶﾗ-
|
|
16 |
93306-30610 |
ﾍﾞｱﾘﾝｸﾞ
|
|
17 |
99009-72500 |
ｻｰｸﾘﾂﾌﾟ
|
|
18 |
6B6-17585-00 |
ｶﾗ-,ｷﾞﾔ
|
|
19 |
6B6-17586-00 |
ｷﾞｱ, ﾄﾗﾝｽﾌｱ ﾄﾞﾗｲﾌﾞ
|
|
20 |
90209-25008 |
WASHER
|
|
21 |
93440-28062 |
CIRCLIP
|
|
|
