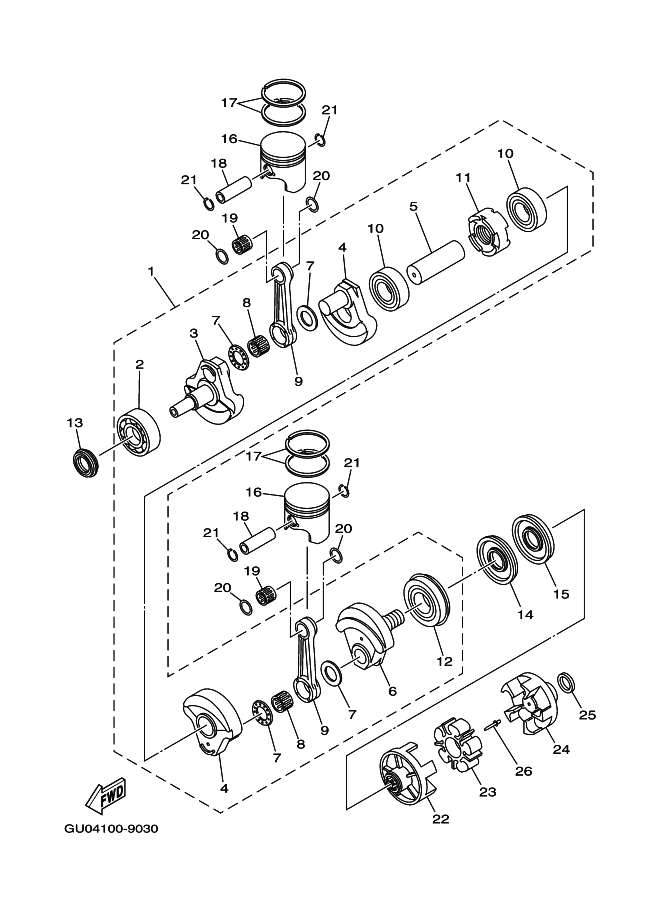

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
66E-11400-00 |
CRANKSHAFT ASSY
|
|
2 |
93305-307U0 |
BEARING
|
|
3 |
66E-11412-00 |
CRANK 1
|
|
4 |
66E-11422-00 |
CRANK 2
|
|
5 |
66E-11431-00 |
CRANK 3
|
|
6 |
66E-11442-00 |
CRANK 4
|
|
7 |
66E-11685-00 |
WASHER, CRANK PIN
|
|
8 |
93310-627U6 |
BEARING
|
|
9 |
66E-11651-00 |
ROD, CONNECTING
|
|
10 |
93306-208U1 |
BEARING
|
|
11 |
66E-11515-00 |
SEAL, LABYRINTH 1
|
|
12 |
93306-308U1 |
BEARING
|
|
13 |
93103-35M03 |
ｵｲﾙ ｼ-ﾙ
|
|
14 |
93101-36M62 |
ｵｲﾙ ｼ-ﾙ
|
|
15 |
93101-36M61 |
ｵｲﾙ ｼ-ﾙ
|
|
16 |
66E-11631-00-A0 |
PISTON (STD)
UR_RED
|
|
16 |
66E-11631-00-B0 |
PISTON (STD)
UR_ORANGE
|
|
16 |
66E-11631-00-C0 |
PISTON (STD)
UR_GREEN
|
|
16 |
66E-11631-00-D0 |
PISTON (STD)
UR_PURPLE
|
|
17 |
66E-11603-01 |
PISTON RING SET (STD)
|
|
18 |
66E-11633-00 |
PIN, PISTON
|
|
19 |
93310-422U2 |
BEARING
|
|
20 |
90201-22M04 |
WASHER, PLATE
|
|
21 |
66E-11634-00 |
CLIP, PISTON PIN
|
|
22 |
66E-45813-10-94 |
FLANGE, COUPLING
|
|
23 |
66E-4581J-00 |
RUBBER SHAFT COUPLING
|
|
24 |
66E-45593-10-94 |
【販売終了】FLANGE, COUPLING 1
|
|
25 |
90201-24M02 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
26 |
90267-48957 |
RIVET, BLIND
|
|
|
