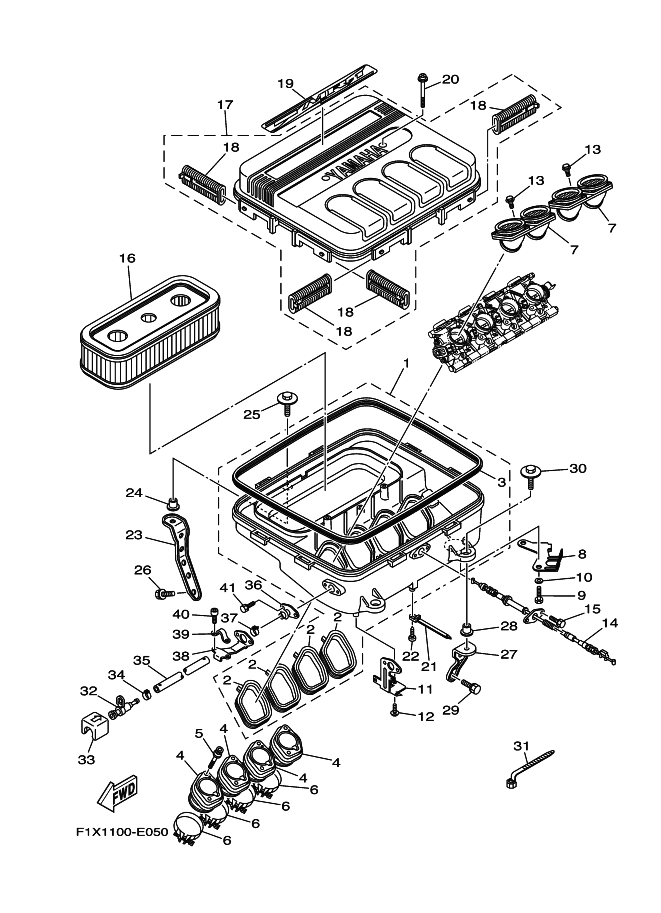

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
6B6-14410-01 |
ｴｱｸﾘ-ﾅｱｾﾝﾌﾞﾘ
|
|
2 |
6B6-14239-00 |
ｼ-ﾙ
|
|
3 |
60E-14457-00 |
SEAL
|
|
4 |
6B6-13795-00 |
ｼﾞﾖｲﾝﾄ, ｽﾛﾂﾄﾙ ﾎﾞﾃﾞｲ 1
|
|
5 |
90110-08020 |
BOLT, HEXAGON SOCKET HEAD
|
|
6 |
90450-57002 |
HOSE CLAMP ASSY
|
|
7 |
6B6-1440A-00 |
ﾘﾎﾞﾝ, ｻﾌﾞｱｾﾝﾌﾞﾘ
|
|
8 |
6B6-14869-00 |
ﾌﾞﾗｹﾂﾄ 3
|
|
9 |
97013-06016 |
ﾎﾞﾙﾄ
|
|
10 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
11 |
60E-14867-00 |
BRACKET
|
|
12 |
90160-05003 |
ｽｸﾘﾕ,ﾗｳﾝﾄﾞﾀﾂﾋﾟﾝｸﾞ
|
|
13 |
90109-06053 |
BOLT
|
|
14 |
6B6-26311-11 |
ｹ-ﾌﾞﾙ,ｽﾛﾂﾄﾙ 1
|
|
15 |
90119-06078 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
16 |
6B6-14451-01 |
ｴﾚﾒﾝﾄ,ｴｱｸﾘ-ﾅ
|
|
17 |
6B6-14420-00 |
ｴｱｸﾘ-ﾅ-ｱｾﾝﾌﾞﾘ 2
|
|
18 |
66V-13898-00 |
HOLDER
|
|
19 |
6B6-2339F-00 |
ｸﾞﾗﾌｲﾂｸ 2
|
|
20 |
90159-05006 |
SCREW, WITH WASHER
|
|
21 |
90465-12M53 |
CLAMP
|
|
22 |
90160-05003 |
ｽｸﾘﾕ,ﾗｳﾝﾄﾞﾀﾂﾋﾟﾝｸﾞ
|
|
23 |
60E-14413-00 |
STAY
|
|
24 |
60E-14449-00 |
ｶﾗ-
|
|
25 |
90119-08050 |
BOLT, WITH WASHER
|
|
26 |
90119-08032 |
BOLT, WITH WASHER
|
|
27 |
60E-14414-00 |
STAY 2
|
|
28 |
60E-14449-00 |
ｶﾗ-
|
|
29 |
90119-08032 |
BOLT, WITH WASHER
|
|
30 |
90119-08050 |
BOLT, WITH WASHER
|
|
31 |
90464-20005 |
ｸﾗﾝﾌﾟ
|
|
32 |
60E-24300-01 |
ﾌﾕｴﾙﾊﾟｲﾌﾟｼﾞﾖｲﾝﾄ
|
|
33 |
60E-24474-00 |
COVER
|
|
34 |
90450-17M17 |
HOSE CLAMP ASSY
|
|
35 |
60E-14294-00 |
HOSE
|
|
36 |
60E-24329-00 |
SEAL
|
|
37 |
90467-09120 |
CLIP
|
|
38 |
60E-24364-00 |
STAY
|
|
39 |
60E-24366-00 |
CLAMP, FUEL PIPE 1
|
|
40 |
91380-04008 |
BOLT
|
|
41 |
97513-06516 |
BOLT, WITH WASHER
|
|
|
