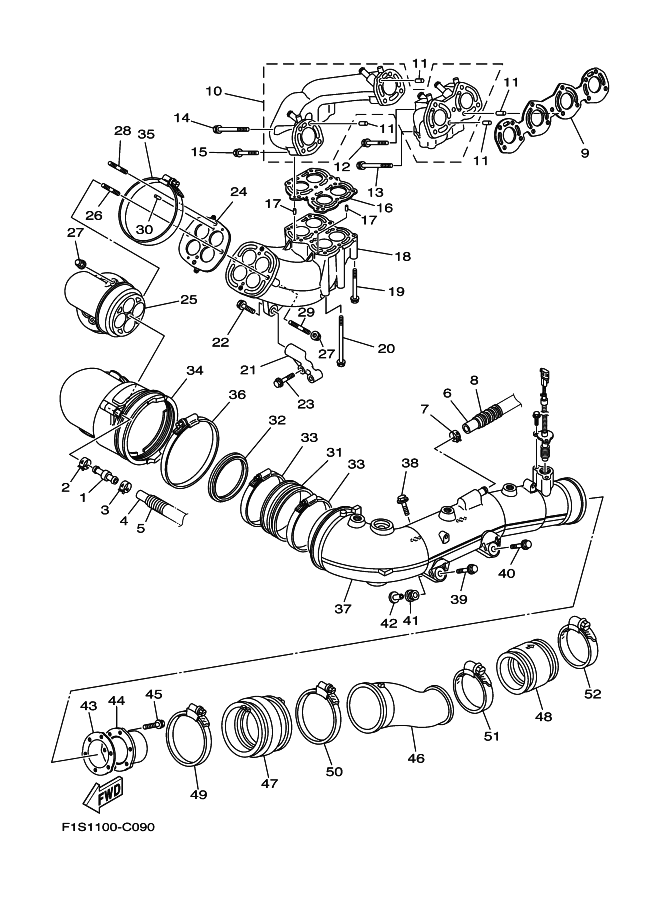

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60E-12594-00 |
JOINT, HOSE 4
|
|
2 |
90467-120A0 |
CLIP
|
|
3 |
90467-130A0 |
CLIP
|
|
4 |
90445-14M06 |
HOSE (L630)
|
|
5 |
90446-20M65 |
ﾎｰｽ(L445)
|
|
6 |
90445-20002 |
HOSE
|
|
7 |
90467-200A0 |
ｸﾘﾂﾌﾟ
|
|
8 |
90447-22002 |
HOSE, WITH SPRING
|
|
9 |
60E-14613-01 |
ｶﾞｽｹﾂﾄ,ｴｷｿﾞ-ｽﾄﾊﾟｲﾌﾟ
|
|
10 |
60E-14610-00-94 |
【販売終了】EXHAUST PIPE ASSY 1
|
|
11 |
93608-16M16 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
12 |
90119-08029 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
13 |
90119-08034 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
14 |
90119-08029 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
15 |
90119-08M62 |
BOLT, WITH WASHER
|
|
16 |
60E-14739-02 |
ｶﾞｽｹﾂﾄ,ﾏﾌﾗﾀﾞﾝﾊﾟ 1
|
|
17 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
18 |
60E-14631-00-94 |
PIPE, EXHAUST 3
|
|
19 |
90119-08036 |
BOLT, WITH WASHER
|
|
20 |
90119-08031 |
BOLT, WITH WASHER
|
|
21 |
60E-14771-00-94 |
STAY, MUFFLER 1
|
|
22 |
90119-10013 |
BOLT, WITH WASHER
|
|
23 |
90119-08043 |
BOLT, WITH WASHER
|
|
24 |
60E-14749-02 |
ｶﾞｽｹﾂﾄ,ﾏﾌﾗﾀﾞﾝﾊﾟ 2
|
|
25 |
60E-14712-01-94 |
ﾘﾝｸﾞ,ｼﾞﾖｲﾝﾄ
|
|
26 |
90116-10016 |
BOLT, STUD
|
|
27 |
90179-10M35 |
NUT
|
|
28 |
90116-10017 |
BOLT, STUD
|
|
29 |
90116-10018 |
BOLT, STUD
|
|
30 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
31 |
60E-14625-00 |
JOINT, EXHAUST 2
|
|
32 |
60E-14642-00 |
SEAL, EXHAUST
|
|
33 |
90450-99M06 |
HOSE CLAMP ASSY
|
|
34 |
60E-14615-00 |
JOINT, EXHAUST 1
|
|
35 |
90450-99M16 |
HOSE CLAMP ASSY
|
|
36 |
90450-99M18 |
HOSE CLAMP ASSY
|
|
37 |
60E-14721-00-94 |
MUFFLER 2
|
|
38 |
90119-10013 |
BOLT, WITH WASHER
|
|
39 |
90119-10011 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
40 |
90119-10017 |
BOLT, WITH WASHER
|
|
41 |
90480-21M63 |
ｸﾞﾛﾒﾂﾄ
|
|
42 |
90387-11002 |
COLLAR
|
|
43 |
60E-14623-00 |
GASKET, EXHAUST PIPE
|
|
44 |
60E-14784-00-94 |
PIPE, TAIL
|
|
45 |
95023-06016 |
BOLT
|
|
46 |
6B6-14752-00-94 |
ﾊﾟｲﾌﾟ,ｱｳﾄﾚﾂﾄ
|
|
47 |
6B6-1475E-00 |
ﾊﾟｲﾌﾟ 2
|
|
48 |
6B6-1475F-00 |
ﾊﾟｲﾌﾟ 3
|
|
49 |
90450-99M06 |
HOSE CLAMP ASSY
|
|
50 |
90450-99M06 |
HOSE CLAMP ASSY
|
|
51 |
90460-90M11 |
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
|
52 |
90460-90M11 |
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
|
|
