見出番号 |
部品番号 |
部品名 |
数量 |

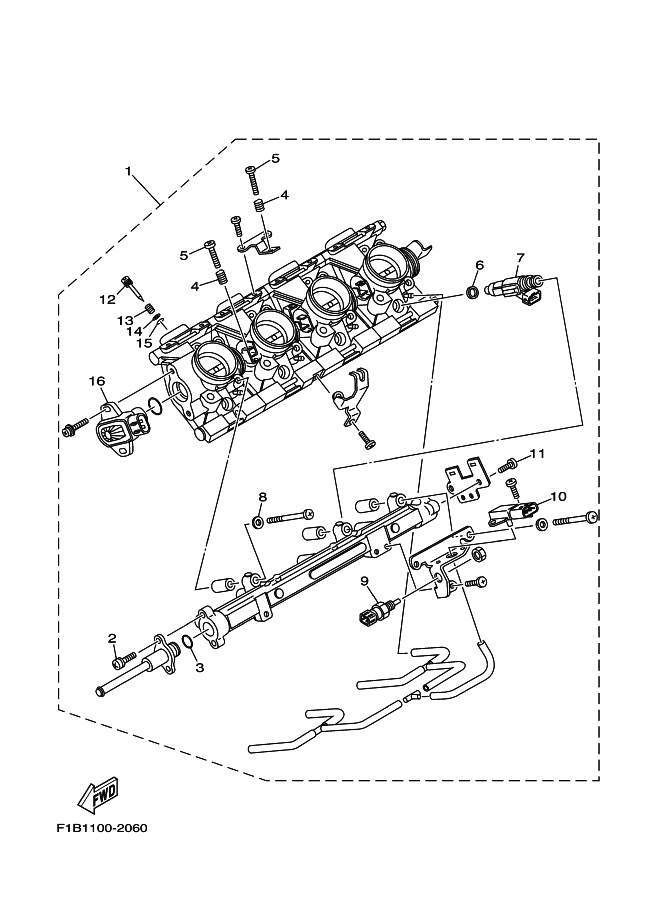

1 |
60E-13750-00 |
THROTTLE BODY ASSY
|
|
2 |
68V-81147-00 |
SCREW 3
|
|
3 |
68V-14397-00 |
O-RING
|
|
4 |
3KW-14932-00 |
ｽﾌﾟﾘﾝｸﾞ,ｽﾛﾂﾄﾙ 2
|
|
5 |
69J-14321-00 |
SCREW, THROTTLE
|
|
6 |
90430-09002 |
GASKET
|
|
7 |
60E-13761-00 |
INJECTOR ASSY
|
|
8 |
4XY-14951-00 |
WASHER
|
|
9 |
65L-85886-00 |
ｻ-ﾓｾﾝｻ-
|
|
10 |
60E-82380-00 |
SENSOR, PRESSURE
|
|
11 |
97890-05008 |
SCREW, PAN HEAD
|
|
12 |
4BH-14923-00 |
SCREW, PILOT
|
|
13 |
4BH-14134-00 |
SPRING, AIR ADJUSTING
|
|
14 |
3L5-14962-00 |
WASHER
|
|
15 |
3H1-14147-00 |
O-RING
|
|
16 |
69J-85885-00 |
THROTTLE SENSOR ASSY
|
|
|
