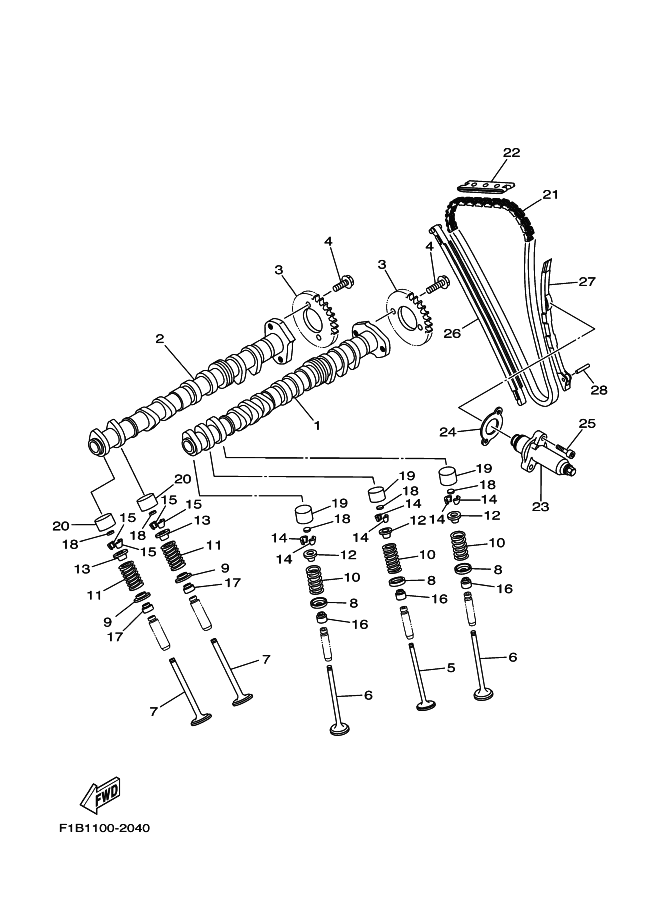

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60E-12171-00 |
CAMSHAFT 1
|
|
2 |
60E-12181-00 |
CAMSHAFT 2
|
|
3 |
4XV-12176-00 |
SPROCKET, CAM CHAIN
|
|
4 |
90105-07342 |
BOLT, FLANGE
|
|
5 |
4XV-12111-00 |
VALVE, INTAKE
|
|
6 |
4XV-12112-00 |
VALVE, INTAKE 2
|
|
7 |
5LV-12121-00 |
VALVE, EXHAUST
|
|
8 |
1HX-12116-01 |
SEAT, VALVE SPRING
|
|
9 |
3GM-12126-00 |
SEAT, VALVE SPRING 2
|
|
10 |
4XV-12113-00 |
SPRING, VALVE INNER
|
|
11 |
4XV-12114-00 |
SPRING, VALVE OUTER
|
|
12 |
1HX-12117-00 |
RETAINER, VALVE SPRING
|
|
13 |
1WG-12117-00 |
RETAINER, VALVE SPRING
|
|
14 |
1HX-12118-00 |
COTTER, VALVE
|
|
15 |
1WG-12118-00 |
ｺﾂﾀ,ﾊﾞﾙﾌﾞ
|
|
16 |
4TV-12119-00 |
SEAL, VALVE STEM
|
|
17 |
4SV-12119-00 |
SEAL, VALVE STEM
|
|
18 |
1HX-12168-00 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(120)
UR
|
|
18 |
1HX-12168-20 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(125)
UR
|
|
18 |
1HX-12168-40 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(130)
UR
|
|
18 |
1HX-12168-60 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(135)
UR
|
|
18 |
1HX-12168-80 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(140)
UR
|
|
18 |
1HX-12168-A0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(145)
UR
|
|
18 |
1HX-12168-F0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(150)
UR
|
|
18 |
1HX-12168-H1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(155)
UR
|
|
18 |
1HX-12168-K1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(160)
UR
|
|
18 |
1HX-12168-M1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(165)
UR
|
|
18 |
1HX-12168-R1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(170)
UR
|
|
18 |
1HX-12168-U1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(175)
UR
|
|
18 |
1HX-12168-W1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(180)
UR
|
|
18 |
1HX-12168-Y1 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(185)
UR
|
|
18 |
1HX-12169-11 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(190)
UR
|
|
18 |
1HX-12169-31 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(195)
UR
|
|
18 |
1HX-12169-50 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(200)
UR
|
|
18 |
1HX-12169-70 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(205)
UR
|
|
18 |
1HX-12169-90 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(210)
UR
|
|
18 |
1HX-12169-E0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(215)
UR
|
|
18 |
1HX-12169-G0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(220)
UR
|
|
18 |
1HX-12169-J0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(225)
UR
|
|
18 |
1HX-12169-L0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(230)
UR
|
|
18 |
1HX-12169-N0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(235)
UR
|
|
18 |
1HX-12169-T0 |
ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(240)
UR
|
|
19 |
60E-12153-20 |
LIFTER, VALVE
UR/BLUE
|
|
19 |
60E-12153-30 |
LIFTER, VALVE
UR/RED
|
|
20 |
3FV-12153-10 |
LIFTER, VALVE
|
|
21 |
94582-12130 |
ﾁｴ-ﾝ
|
|
22 |
5BE-12241-00 |
ｶﾞｲﾄﾞ,ｽﾄﾂﾊﾟ2
|
|
23 |
60E-12210-00 |
TENSIONER ASSY, CAM CHAIN
|
|
24 |
4FM-12213-00 |
GASKET, TENSIONER CASE
|
|
25 |
91380-06025 |
ﾎﾞﾙﾄ
|
|
26 |
4XV-12251-00 |
DAMPER, CHAIN 1
|
|
27 |
4XV-12252-00 |
DAMPER, CHAIN 2
|
|
28 |
93607-44190 |
PIN, DOWEL
|
|
|
