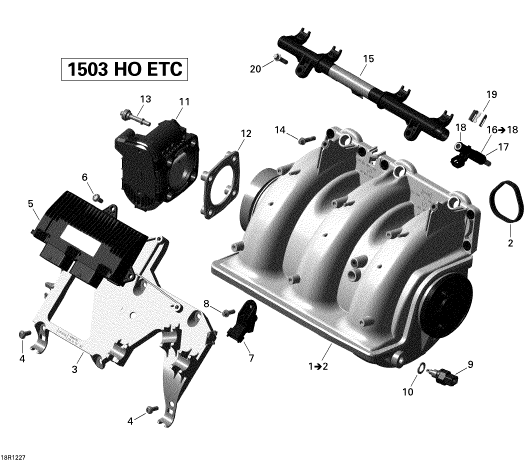

1

420867951

INDUCTION MANIFOLD-BY
Induction

2

420950740

GASKET
Gasket

3

420460842

BASE PLATE
Base

4

420641583

TORX FLANGE SCREW
Flanged

5

420666388

ELECTRONIC BOX
Electronic

5

420666389

ELECTRONIC BOX
Electronic

6

420641583

TORX FLANGE SCREW
Flanged

7

420274057

PRESSURE SENSOR
Pressure

8

420641048

TORX FLANGE SCREW
Flanged

9

420222423

TEMPERATURE SENSOR
Temperature

10

420227987

THRUST WASHER
Thrust

11

420892590

THROTTLE BODY SOCKET
Throttle

12

420950792

RUBBER GASKET
Rubber

13

420440560

SCREW-TORX
Torx

14

420641238

SCREW-TORX FLANGE
Flanged

15

420874396

FUEL RAIL ASSY
Fuel

16

420874834

INJECTOR
Fuel

17

420431890

O-RING
O-Ring

18

420631220

O-RING
O-Ring

19

420853030

CLIP
Clip

20

420641238

SCREW-TORX FLANGE
Flanged
